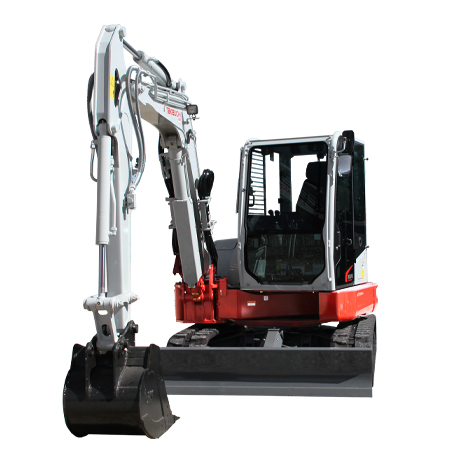

TB257FR Compact Excavator

The newest excavator in the FR series, the TB257FR features a side-to-side (STS) offset boom coupled with the tight tail swing for unmatched visibility to the work equipment and enables it to rotate fully with very little overhang.  With an operating weight of 12,930 lb, a bucket breakout force of 10,431 lb and multiple hydraulic auxiliary circuits makes the TB257FR an outstanding attachment platform and perfect for limited space job sites. Its low center of gravity and optimized counterweight placement creates an extremely stable platform with lifting capabilities similar to that of a conventional machine.

Product Details

Features

ENGINE
U.S. EPA Tier 4 Final
Turbocharged Diesel
Electronic Fuel Injection
DOC+DPF Exhaust After Treatment
Automatic Engine Idle Feature
Dual Element Air Filter
Working Modes: Standard, ECO and High Altitude
Automatic Cold Start Device
High Capacity Radiator and Hydraulic Oil Cooler
Engine Safe Start System
90 Amp Alternator
UNDERCARRIAGE AND FRAME
Triple Flanged Track Rollers
2-Speed Axial Piston Travel Motors with Counterbalance Valves
Integrated Load Sensing, Automatic Downshift
Automatic Fail-Safe Mechanical Parking Brake
High Torque Planetary Final Drives
Automatic Slew Break with Shockless Relief Valve
Concealed in Frame Travel Motor Connections
Heavy Duty Backfill Blade with Float
Large Wrap Around Protective Counterweight
15.7" Rubber Tracks
15.7" Steel Tracks (optional)
OPERATOR'S STATION
ROPS/OPG (Top Guard, Level 1) Four Post Canopy
Pressurized Cab with A/C, Heat, Defrost, Windshield Wiper and Washer, Skylight with Sunshade, AM/FM/MP3 Bluetooth Radio (Cab Only)
Multifunction Joystick Controls
Hand Dial Electronic Throttle Control
Deluxe High Back Suspension Seat
Pilot Control Safety Lockout System
Adjustable Arm Rest
Removable/Washable Floor Mat
Cup Holder
12 Volt Power Socket
2" Retractable Seat Belt
3" Retractable Seat Belt (Optional)
HYDRAULIC & WORKING EQUIPMENT
Variable Displacement Axial Piston Hydraulic Pump with Tandem Gear Pumps
Cushioned Boom and Offset Cylinders
STS (Side-to-Side Shift Boom Design
Boom Holding Valve with Lift Overload Alarm
Hydraulic Pilot Controls
Primary and Secondary Hydraulic Circuits Plumbed to Mid-Arm Shutoff Valves
Proportional Primary and Secondary Auxiliary Circuit Controls
Primary Auxiliary Detent Feature
Auxiliary Flow Adjustable from Monitor
Automatic One-Way Flow Valve for Primary Auxiliary Circuit
Automatic Auxiliary Circuit Pressure Release Feature
Hydraulic Reservoir with Fluid Level Sight Gauge
LED Work Lights
Travel Alarm
Multiple Attachment Presets
Integrated Hydraulic Quick Coupler Control System (Quick Coupler Optional)
Primary Auxiliary Circuit Flow Selector Valve
Pilot Control Pattern Change Valve (ISO or SAE)
Main Boom Cylinder Guard
Long Arm with Integrated Thumb Mount
Dual Pin Position Bucket (optional)
Mechanical Bucket Quick Coupler (optional)
Hydraulic Pin Grabber Quick Coupler (optional)
Main Pin Hydraulic Thumb (optional)

Specifications

OPERATING PERFORMANCE
Operating Weight - Cab (Rubber)12,930 lb(5,865 kg)
Operating Weight - Cab (Steel)12,675 lb(5,750 kg)
Slew Speed9.6 rpm
Travel Speed - Low Range1.6 mph(2.6 km / hr)
Travel Speed - High Range3.0 mph(4.8 km / hr)
Gradeability30 deg
Ground Pressure - Canopy4.7 psi(32.6 kPa)
Ground Pressure - Cab4.8 psi(33.3 kPa)
Maximum Bucket Breakout Force10,431 lb(4,731 kg)
Maximum Arm Digging Force5,190 lb(2,354 kg)
Traction Force15,040 lb(6,822 kg)
Boom Swing Angle (Left/Right)30 deg / 16 deg
HYDRAULIC SYSTEM
Auxiliary Flow - Primary Circuit27.7 gpm(105.0 L / min)
Auxiliary Flow - Secondary Circuit11.8 gpm(44.7 L / min)
Hydraulic System Pressure3,481 psi(24.0 MPa)
ENGINE
Make / ModelKubota V2403-CR-TE5B
Displacement148.5 cu in(2.4 L)
Horsepower @2,200 rpm52.3 hp(39.0 kW )
Maximum Torque @ 1,300 rpm144.3 ft-lb(195.6 Nm )
FLUID CAPACITIES
Engine Lubrication10.0 qt(9.5 L)
Cooling System10.6 qt(10.0 L)
Fuel Tank Capacity18.5 gal(70.2 L)
Hydraulic Reservoir Capacity13.7 gal(52.0 L)
Hydraulic System Capacity26.4 gal(100.0 L)

Dimensions

MACHINE DIMENSIONS
Maximum Reach20' 4.6"(6,215 mm)
Maximum Reach at Ground Level19' 11.4"(6,080 mm)
Maximum Digging Depth12' 9.4"(3,895 mm)
Maximum Vertical Digging Depth10' 4.6"
(3,160 mm)
Maximum Height of Cutting Edge18' 0.3"(5,495 mm)
Maximum Dumping Height12' 9.2"(3,890 mm)
Front Swing Radius8' 5.5"(2,580 mm)
Front Swing Radius with Boom Offset4' 8.5"(1,435 mm)
Slew Radius3' 10.6"(1,180 mm)
Overall Length17' 8.4"(5,395 mm)
Overall Height8' 5.4"(2,575 mm)
Upper Structure Overall Width6' 2.8"(1,900 mm)
Ground Clearance11.8"(300 mm)
Crawler Base6' 6.0"(1,980 mm)
Crawler Overall Length8' 2.4"(2,500 mm)
Crawler Overall Width6' 6.7"(2,000 mm)
Crawler Shoe Width15.7"(400 mm)

Takeuchi Fleet Management

TAKEUCHI FLEET MANAGEMENT
2 Year Standard Service
Minimize Downtime
Remote Diagnostics
Utilization Tracking
Proactive Maintenance
Control Costs
Geofencing

TFM Brochure

Four Pillars

Engine

  • Kubota V2403-CR-TE5B Turbocharges Engine U.S. EPA Tier 4 Final Diesel
  • 52.3 hp and 144.3 ft-lb of Torque
  • Electronic Dial Type Throttle Control with Automatic Engine Idle
  • Automatic Fuel Priming System
  • Low RPM Regeneration Reduces Fuel Consumption

Hydraulic System

  • Open Center, 4-Pump Hydraulic System
  • System Flow: 46.4 gpm
    • 1st Aux. Flow: 27.7 gpm
    • 2nd Aux. Flow: 11.8 gpm
    • System Pressure: 3,481 psi
  • 1st, 2nd, and 3rd Auxiliary Circuits Plumbed to Mid-Arm
  • 3rd Auxiliary is Designed for Use with the Takeuchi Hydraulic Pin Grabber Coupler
  • Auxiliary Flow Adjustable Through Multifunction Monitor

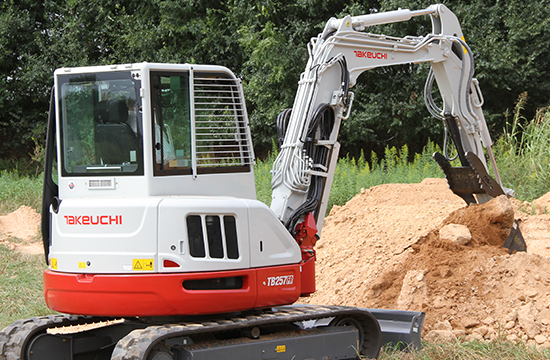

Work Equipment

  • Long Arm with Integrated Thumb Mount
  • Bucket Breakout Force: 10,431 lb
  • Arm Crowd Force: 5,190 lb
  • Wide Working Range
    • Dig Depth: 12′ 9.4″
    • Reach: 20′ 4.6″
    • Height: 12′ 9.2″
  • Boom Holding Valve with Integrated Lift Overload Alarm
  • Available Takeuchi Hydraulic Pin Grabber Coupler

Side-to-Side Boom

  • Boom can be Stored Over Center Enabling the Machine to Rotate Nearly within the Width of the Tracks
  • Side-to-Side Boom Allows for Digging in Offset Right and Left Positions
  • Provides Unmatched Visibility

Travel System

  • Lead Sensing Two Speed Travel Motors with Automatic Step Down
  • Traction Force: 15,040 lb
  • High Torque Final Planetary Drives
  • Integrated Fail-Safe Mechanical Parking Brake
  • Triple Flange Rollers Provide Multiple Contact Points with the Track Making it Less Susceptible to Detracking

Blade

  • Blade Design Keeps Material Rolling to the Front of the Excavator
  • Blade Float Simplifies Backfilling and Finish Work
  • Integrated Anchor Points

Build Quality

  • High Strength Steel Service Hoods with Heavy Duty Hinges and Locks
  • Heavy Gauge Steel K-Frame
  • Large Cylinders, Pins and Bushings
  • Oversizes Slew Bearing and Ring Gear
  • Heavy Duty STS Swing Boom with Multiple Oversized King Pins

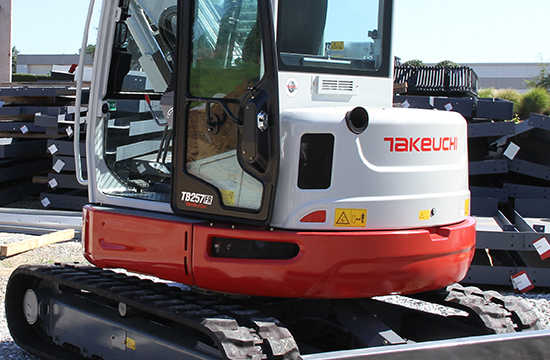

Added Protection

  • Wraparound Protective Counterweight Stays in Line with Rear of the Machine for Added Stability
  • Auxiliary Hydraulic Lines Feature a Steel Spiral Wrap for Greater Protection
  • Boom Cylinder Guard

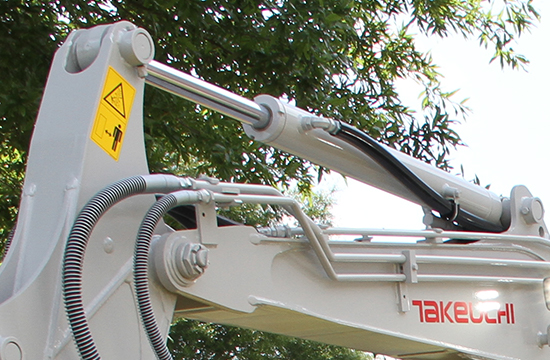

Cushioned Cylinders

  • Cushioned Boom and Swing Cylinders
  • Reduces Shock Improving Longevity of Cylinders
  • Less Felt Recoil by the Operator when Working and Smoother Operation

Undercarriage

  • Heavy Gauge Steel Design
  • Triple Flange Rollers Support the Track in Multiple Positions Improving Track Life and Stability
  • Upper Roller Maintains Track Alignment and Helps Shed Debris
  • Sloped Design on Track Frame Allows for Easier Clean out and Reduces Material Retention
  • Guard Protects Track tensioning Grease Zerk from Damage and Debris

Blade

  • Box Frame Design on the Rear of the Blade Enhances Rigidity
  • Two Gussets on Each Side of the Blade Frame Add Additional Strength
  • Blade Arms are Constructed of High Strength Rectangular Steel Tube
  • Large Steel Guard Protects Blade Lift Cylinder
  • Segmented Lines for Blade Cylinder Simplify Replacement and Feature a Steel Spiral Wrap for Added Protection

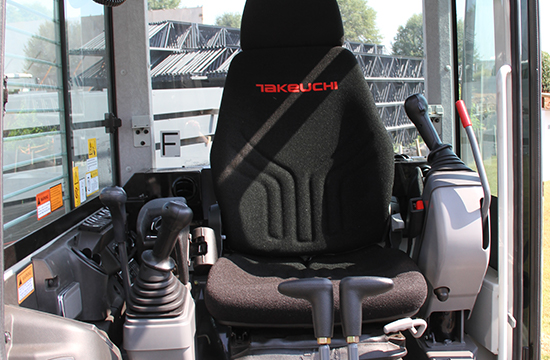

Cabin

  • Spacious Flat Floor Area with Footrests and Removable Floor Mat
  • Suspension Seat Equipped with 2″ Retractable Seat Belt Features Fore/Aft, Tilt, Height and Weight Adjustments
  • Short Stroke Joysticks are Low Effort and Precise
  • Adjustable Arm Rests
  • Wide, Easy Entry/Exit Cabin

Multifunction Display

  • Real Time Machine Health and Vitals
  • Simple Auxiliary flow Rate Adjustments
  • Multiple Attachement Presets
  • Unobstructed Views
  • Easy to See in Various Lighting Conditions

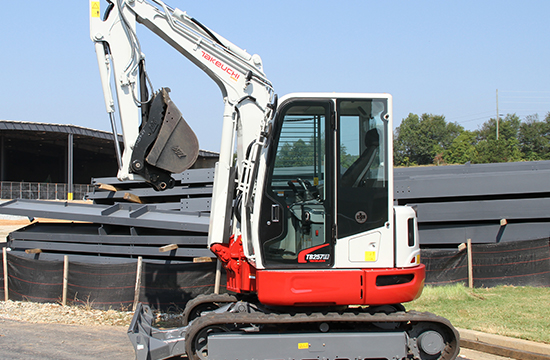

Peace of Mind

  • Four Post Canopy Provides ROPS/TOPS/OPG Level 1 Certified Protection
  • Cab Design Provides Excellent Visibility Around Machine
  • LED Work Light Package Ensures Excellent Visibility in Low Light Conditions
  • Safe Start System Requires Lockout Lever to be in the Raised Position in Order to Start in Machine
  • 2 Year/2,000 Hour Full Machine Warranty

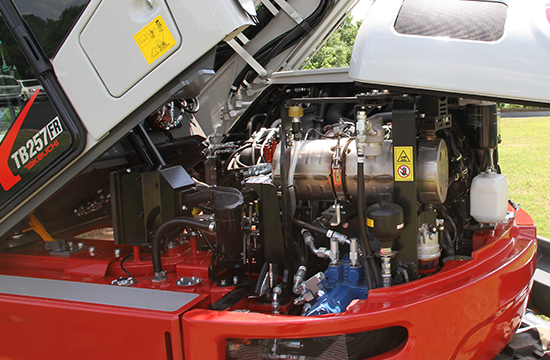

Rear Service

  • Lockable Engine Hood Opens Overhead for Access to Daily Inspection and Maintenance Points
  • Easy Access to Engine Oil Dipstick, Engine Oil Fill and Engine Oil Filter
  • Steel Hydraulic Tank with Fill, Filter Access and Sight Gauge
  • Easy Access to Pilot Line Filter and Pump Group/Test Ports

Right Side Service

  • Right Side Hood is Lockable and Swings Out for Greater Access
  • Access to Heavy Duty Side-by-Side Cooling Module
  • Dual Element Air Cleaners are Simple to Inspect, Clean or Replace
  • Easy Battery Access

Forward Tilting Cabin

  • Provides Access to Control Valve, Slew Motor, Swivel Joint and Engine
  • Easy Clean-Out of Upper Frame
  • Only Requires Removal of Two Cab Bolts to Tilt Cabin Forward
