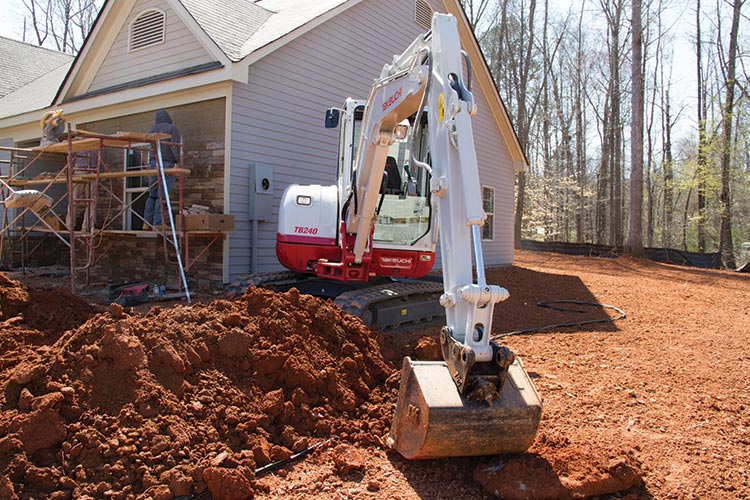

TB240 Compact Excavator
The TB240 provides exceptional power, performance, a wide working range, and an excellent feature set. The cabin is spacious and well appointed ensuring operator comfort and efficiency.
Features
| ENGINE |
|---|
| EPA Final Tier 4 Emission Compliant |
| DOC+DPF Exhaust After Treatment |
| High Pressure Common Rail Fuel Injection |
| Automatic Fuel Bleed System |
| Dual Element Air Filter |
| Automatic Idle |
| Working Modes: Power and High Altitude |
| Engine Preheat Starting Aid |
| High Capacity Radiator |
| High Capacity Fuel Filters |
| ELECTRICAL |
| LCD Informational Display (canopy) |
| 5.7" Color Multi-Informational Display (cab) |
| Sealed Rocker Switches |
| 12 volt System with 40 amp Alternator |
| Halogen Work Lights: Boom and Side Cover |
| Travel Alarm |
| Horn |
| UNDERCARRIAGE AND FRAME |
| Triple Flanged Track Rollers |
| Automatic Load Sensing 2 Speed Travel |
| High Torque Planetary Final Drive |
| Heavy Duty Dozer Blade with Float |
| Large Wrap Around Counterweight |
| 13.8" Rubber Tracks |
| 13.8" Steel Tracks (optional) |
| Power Angle Blade with Float and Bolt-on Cutting Edge (optional) |
| OPERATOR'S STATION |
| ROPS / TOPS / OPG (ISO 10262 Level 1) Four Post Canopy |
| Deluxe High Back Suspension Seat |
| Adjustable Arm Rests |
| Proportional Slide Switch for Auxiliary Hydraulics |
| 2" Retractable Seat Belt |
| 3" Retractable Seat Belt (optional) |
| Cab with Air Conditioner, Heat, Defrost, Windshield Wiper and Washer, Skylight with Sunshade, AM / FM / MP3 Radio, 12v Power Outlet (optional) |
| HYDRAULIC & WORKING EQUIPMENT |
| Variable Displacement, Open Center Hydraulics |
| High Capacity Hydraulic Oil Cooler |
| Large Hydraulic Reservoir with Fluid Level Sight Gauge |
| Cushioned Boom, Arm, and Swing Cylinders |
| Main Boom Cylinder Guard |
| Hydraulic Pilot Controls |
| Proportional Auxiliary Controls with Detent |
| Adjustable Auxiliary Flow |
| Primary Auxiliary Hydraulic Circuit Plumbed to Arm |
| Multiple Attachment Presets |
| Flow Selector Valve, Primary Auxiliary Circuit |
| Pattern Change Valve (ISO or SAE) |
| Pilot Accumulator |
| Long Arm with Integrated Thumb Mount |
| Dual Pin Position Bucket (optional) |
| Mechanical Bucket Quick Coupler (optional) |
| Main Pin Hydraulic Thumb (optional) |
Specifications
| OPERATING PERFORMANCE | ||
|---|---|---|
| Operating Weight - Canopy | 8,570 lb | (3,890 kg) |
| Operating Weight - Cab | 8,990 lb | (4,080 kg) |
| Maximum Bucket Breakout Force | 9,959 lb | (4,517 kg) |
| Maximum Arm Digging Force | 4,110 lb | (1,864 kg) |
| Arm Length | 5 ft 3.0 in | (1,600 mm) |
| Slew Speed | 9.6 rpm | |
| Traction Force | 9,533 lb | (4,324 kg) |
| Ground Pressure - Canopy | 4.4 psi | (30.2 kPa) |
| Ground Pressure - Cab | 4.6 psi | (31.6 kPa) |
| Travel Speed - Low | 1.8 mph | (2.9 km / hr) |
| Travel Speed - High | 3.3 mph | (5.3 km / hr) |
| HYDRAULIC SYSTEM | ||
| Total Hydraulic Flow | 30.6 gpm | (115.8 L / min) |
| Auxiliary Hydraulic Flow | 17.1 gpm | (64.9 L / min) |
| Hydraulic System Pressure | 3,481 psi | (24.0 MPa) |
| ENGINE | ||
| Make / Model | Yanmar 4TNV88C | |
| Displacement | 133.6 cu in | (2.2 L) |
| Horsepower @ 2,200 rpm | 35.8 hp | (26.7 kW) |
| Maximum Torque @ 1,430 rpm | 102.6 ft-lb | (139.1 Nm) |
| FLUID CAPACITIES | ||
| Engine Lubrication | 7.8 qt | (7.4 L) |
| Cooling System | 9.5 qt | (9.0 L) |
| Fuel Tank Capacity | 18.5 gal | (70.0 L) |
| Fuel Consumption (65% of Full Load) | 1.2 gal / hr | (4.8 L / hr) |
| Hydraulic Reservoir Capacity | 10.8 gal | (41.0 L) |
| Hydraulic System Capacity | 19.5 gal | (74.0 L) |
Dimensions
| MACHINE DIMENSIONS | ||
|---|---|---|
| Maximum Reach | 18 ft 2.3 in | (5,545 mm) |
| Maximum Reach at Ground Level | 17 ft 9.6 in | (5,425 mm |
| Maximum Digging Depth | 11 ft 4.4 in | (3,465 mm) |
| Maximum Vertical Digging Depth | 8 ft 8.9 in | (2,665 mm) |
| Maximum Dig Height | 17 ft 2.5 in | (5,244 mm) |
| Maximum Dumping Height | 12 ft 6.7 in | (3,828 mm) |
| Front Swing Radius | 6 ft 8.2 in | (2,037 mm) |
| Front Swing Radius with Boom Offset | 5 ft 4.0 in | (1,626 mm) |
| Tail Swing (Slew) Radius | 4 ft 5.7 in | (1,365 mm) |
| Transport Length | 16 ft 8.2 in | (5,020 mm) |
| Transport Height | 8 ft 2.6 in | (2,505 mm) |
| Ground Clearance | 11.6 in | (295 mm) |
| Undercarriage Length | 6 ft 11.0 in | (2,110 mm) |
| Track Width (Rubber) | 13.8 in | (350 mm) |
| Undercarriage Width | 5 ft 8.5 in | (1,740 mm) |
Takeuchi Fleet Management
| TAKEUCHI FLEET MANAGEMENT |
|---|
| 2 Year Standard Service |
| Minimize Downtime |
| Remote Diagnostics |
| Utilization Tracking |
| Proactive Maintenance |
| Control Costs |
| Geofencing |
TFM Brochure
Four Pillars

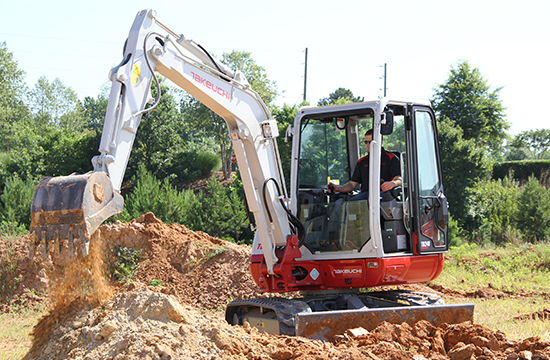

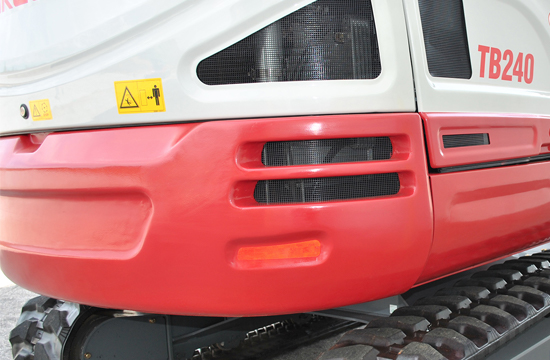

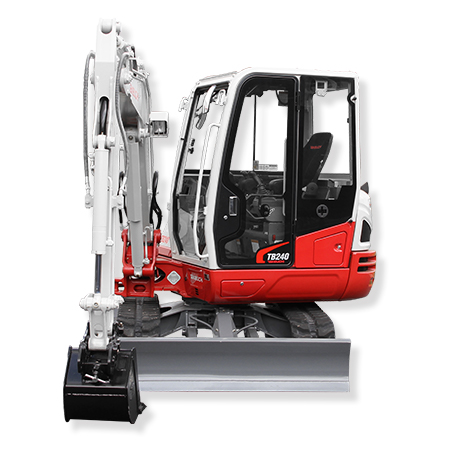

Designed for Success – The TB240 design features a rounded body for improved visibility and functionality, and the conventional tail swing with reduced overhang provides outstanding stability.
EPA Final Tier 4 Engine – Delivers exceptional power and performance and features a DOC and DPF exhaust after-treatment system for reduced emissions.
Dialed In – The electronic throttle control makes it easy to set the throttle to the desired position for operation.
Pick Your Mode – Power, and High Altitude modes allow the operator to choose the operating mode best suited to the application.
Stay in Your Seat – Hydraulic flow can now be adjusted from the comfort of the operator’s seat. Additionally, two way auxiliary hydraulics are plumbed to the arm for greater attachment versatility.
Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.
All Steel Construction – Protects components and ensures long term durability.
Triple Flange Track Rollers – Provide increased roller to rail contact improving track retention.
Shut-off Valve – Simplify attachement installation and limit the release of hydraulic oil
Heavy Duty Boom – Designed for many years of service and dependability.
Reduced Shock – Cushioning on the boom and arm cylinders improves component longevity and operator comfort.
Multi-Informational Display – Is easy to read in all lighting conditions and keeps the operator informed on the status of the machine.
Control Pattern Change Valve – Allows the machine to be matched to the operator’s preferred operating pattern.

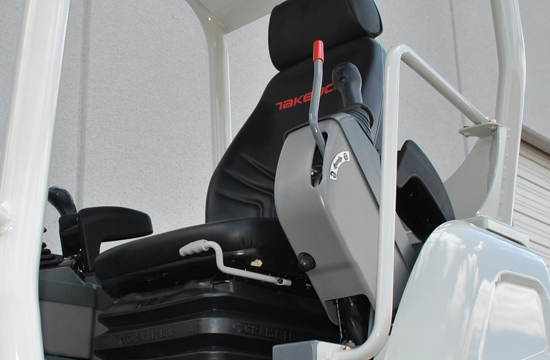

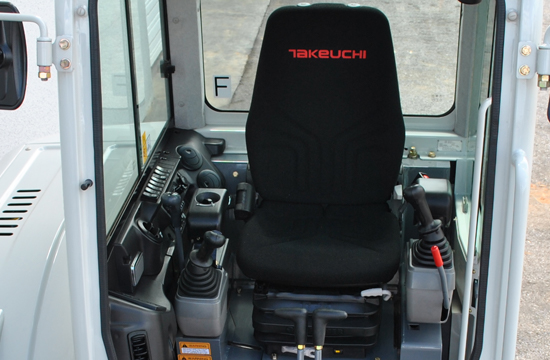

Suspension Seat – Provides weight adjustment along with fore and aft movement and is also equipped with a 2 inch retractable seat belt.
Comfort and Convenience – The operator’s cabin on the TB240 is well appointed and spacious for outstanding comfort.
Pilot Operated Joystick Controls – Deliver precise responsive controls, and are low effort reducing fatigue.
Adjustable Arm Rest – Help provide a comfortable operating position for the precision pilot controls.

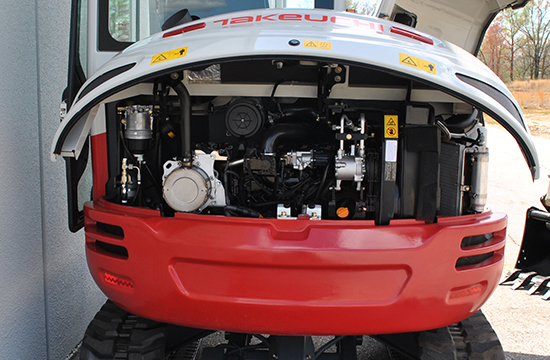

Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.
None Better – The service access hood eliminates the tilt-up cabin, and provides outstanding access to the control valve, hydraulic lines, hydraulic tank, and pattern change valve.
Lockable Fuel Fill – Is convenient and secure. A remote gauge is also provided for assistance when refueling. The system also uses a self bleeding system to provide easier restarts if the machine is run out of fuel.
Keep it Clean – Improved fuel filtration and the use of low sulfur fuel will ensure proper engine performance.
