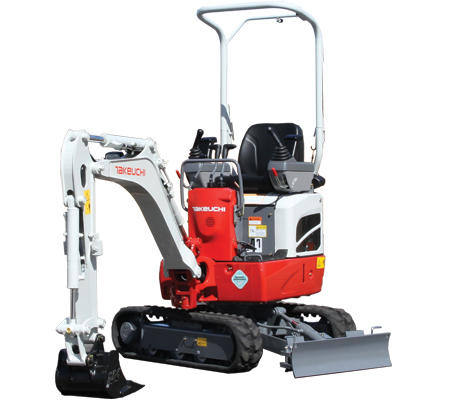

TB210R Compact Excavator

The TB210R delivers excellent performance in an ultra compact design.  It has an impressive feature set that includes pattern change valve, pilot controls, retractable undercarriage, minimum tail swing, and a two post ROPS foldable frame.  It is the ideal excavator for the most confined applications.

Product Details

Features

ENGINE
EPA Final Tier 4 Emission Compliant
Engine Preheat Starting Aid
Automatic Fuel Bleed System
Dual Element Air Filters
ELECTRICAL
Warning Lights for Charge Level, Engine Oil Pressure, and Coolant Temperature
Visual Indicators for High Speed Travel
12 volt System with 40 amp Alternator
Boom Mounted Work Light
Hour Meter
Travel Alarm
Horn
UNDERCARRIAGE AND FRAME
Double Flanged Track Rollers
Hydraulically Retractable Track Frame
Low and High Speed Travel
Backfill Blade with Pin-on Extensions
Protective Counterweight
OPERATOR'S STATION
ROPS / TOPS Two Post Foldable Frame
Foot Controlled Auxiliary Hydraulics
2" Retractable Seat Belt
HYDRAULIC & WORKING EQUIPMENT
Pilot Operated Joystick Controls
Tandem Gear Pumps
Pattern Change Valve
Auxiliary Hydraulic Plumbed to Arm
Selectable One-way and Two-way Auxiliary Operation
Pilot Accumulator
Hydraulic Tank with Fluid Level Sight Gauge
Detent for Continuous Auxiliary Flow

Specifications

OPERATING PERFORMANCE
Operating Weight2,535 lb(1,150 kg)
Max. Bucket Breakout Force2,518 lb(1,142 kg)
Max. Arm Digging Force1,439 lb(653 kg)
Arm Length2 ft 10.6 in(880 mm)
Slew Speed10.0 rpm
Traction Force2,878 lb(1,305 kg)
Ground Pressure4.1 psi28.0 kPa
Travel Speed - Low1.2 mph(2 km / hr)
Travel Speed - High2.3 mph(3.7 km / hr)
HYDRAULIC SYSTEM
Total Hydraulic Flow5.9 gpm(22.2 L / min)
Auxiliary Hydraulic Flow5.9 gpm(22.2 L / min)
Hydraulic System Pressure2,680 psi(18.2 MPa)
ENGINE
Model / MakeKubota / D722-E4B
Displacement43.9 cu in(719 ml)
Horsepower @ 2,200 rpm11.7 hp(8.7 kW)
Max. Torque @ 1,900 rpm26.4 ft-lb(35.8 Nm)
FLUID CAPACITIES
Engine Lubrication3.0 qt(2.8 L)
Cooling System4.2 qt(4.0 L)
Fuel Tank Capacity3.3 gal(12.4 L)
Hydraulic Reservoir Capacity2.3 gal(9.0 L)
Hydraulic System Capacity4.0 gal(15.0 L)

Dimensions

MACHINE DIMENSIONS
Maximum Reach10 ft 9.4 in(3,285 mm)
Maximum Reach at Ground Level10 ft 6.8 in(3,220 mm)
Maximum Digging Depth5 ft 9.1 in(1,755 mm)
Maximum Vertical Digging Depth4 ft 10.0 in(1,475 mm)
Maximum Dig Height9 ft 9.5 in(2,985 mm)
Maximum Dumping Height6 ft 11.5 in(2,120 mm)
Front Swing Radius4 ft 4.0 in(1,320 mm)
Front Swing Radius with Boom Offset3 ft 2.5 in(980 mm)
Tail Swing (Slew) Radius2 ft 0.0 in(610 mm)
Transport Length9 ft 8.3 in(2,955 mm)
Transport Height7 ft 2.2 in(2,190 mm)
Ground Clearance6.2 in(157 mm)
Undercarriage Length4 ft 4.2 in(1,325 mm)
Track Width (Rubber)7.1 in(180 mm)
Undercarriage Width - Track Retracted29.5 in(750 mm)
Undercarriage Width - Track Extended40.2 in(1,020 mm)

Four Pillars

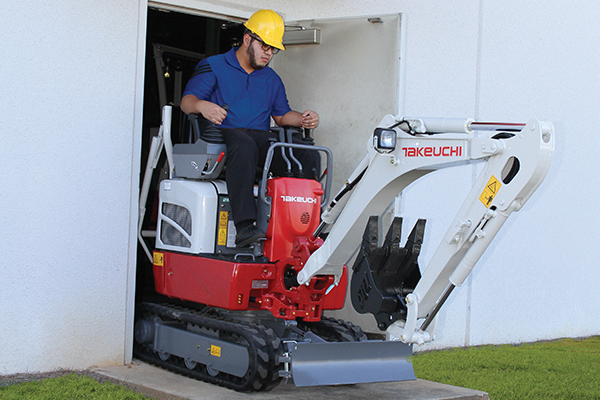

Retractable Undercarriage  – Allows this machine to travel through standard doorways and areas with limited access with ease.

Short Tail Swing – Allows the operator to work in confined applications without concern of rear swing impacts.

Two Speed – Features a convenient push button on the right travel lever to shift from low to high speed.

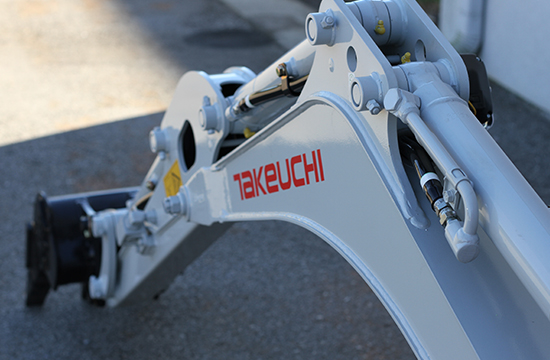

Boom and Arm – Provides greater working range and features two way auxiliary hydraulics with shut-off valves.

Powerful Traction Force – For excellent turning and travel performance in varying conditions.

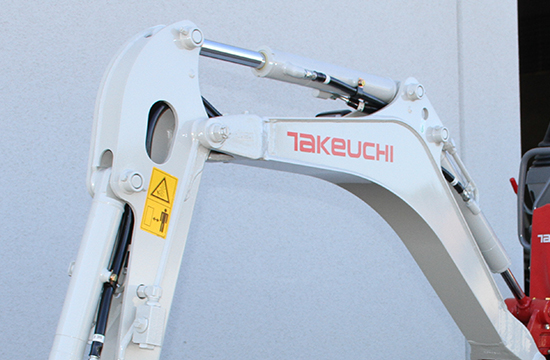

Top Mount Boom Cylinder – Helps protect the boom cylinder from damage from the bucket and debris.

Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.

Double Flange Track Rollers – Provide greater contact between the roller and rail for improved track retention.

Protected Hydraulic Plumbing – All hoses for working equipment are routed through the boom and arm for an extra level of protection, and greater visibility of the work equipment.

Spiral Wrapped Lines – Protect the blade cylinder hydraulic lines from damage due to rocks and debris.

All Steel Construction – Protects components and ensures long term durability.

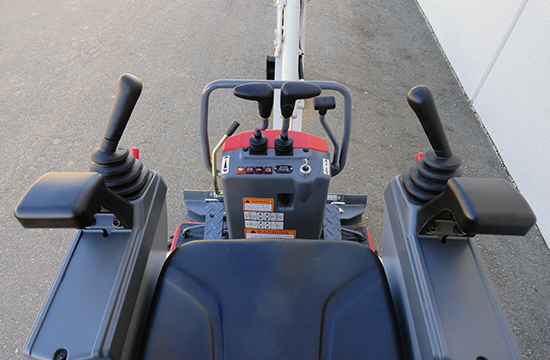

Pilot Operated Joystick Controls – Deliver precise responsive controls, and are low effort reducing fatigue.

Pattern Change Valve – Will allow the operator to choose their preferred operational pattern for greater efficiency and safety.

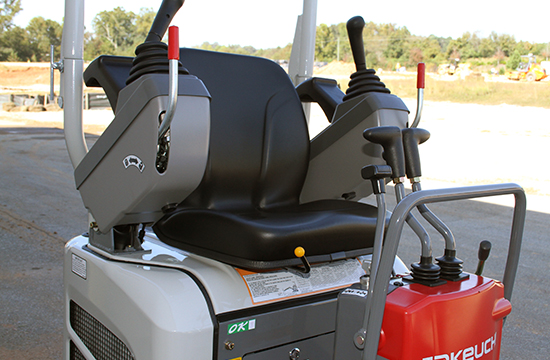

Arm Rests – Fully support the operator’s arm for improved comfort.

Dual Entry Points – Make it easier for the operator to enter or exit the machine from either side.

Operator’s Station – Delivers excellent visibility and operator comfort while providing easy entry and exit.

Convenient Grab Handle – Makes it easy to enter and exit the machine from both the right and left side.

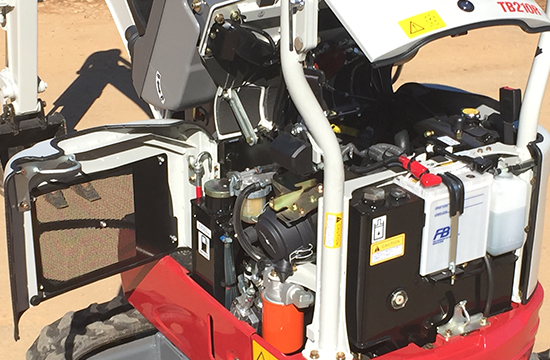

Unmatched Serviceability – Allows all key service and maintenance points to be inspected quickly and easily.

Side Access Panel – Houses dual element air cleaner, fuel filter with shut-off, hydraulic filter, and fuel tank with sight gauge.

Rear Service Access – Allows the operator to easily inspect the hydraulic oil, coolant level, and battery.

Front Compartment – Provides outstanding access to the alternator, engine oil filter and engine oil dipstick.

Selector Valve – Located under the operator’s seat allows operator to quickly choose one way or two auxiliary hydraulic flow.

Lockable Fuel Fill – Is convenient and secure. A remote gauge is also provided for assistance when refueling. The system also uses a self bleeding system to provide easier restarts if the machine is run out of fuel.
