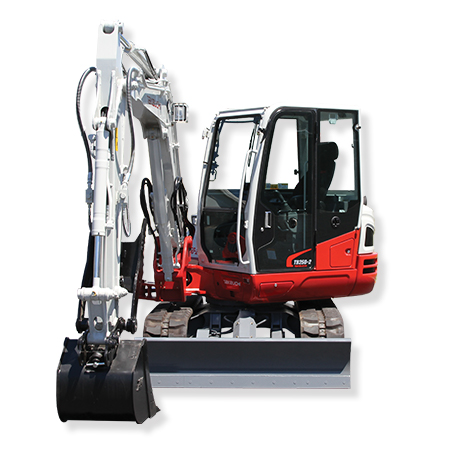

TB250-2 Compact Excavator

The TB250-2 is Takeuchi’s newest excavator in the 5 ton weight class filling the space between the current TB240 and TB260 models. It has an operating weight of 10,957 lbs. (canopy) to 11,288 lbs. (cab), a dig depth of 12’ 4.8” and max reach of over 20’.  Its 39 hp engine is Tier 4 final meeting all current EPA emissions regulations and provides outstanding access to all daily service points.  The TB250-2 will come equipped with a primary auxiliary circuit capable of 24.2 gpm of flow making it an outstanding platform for many different hydraulic attachments.

Product Details

Features

ENGINE
EPA Final Tier 4 Emission Compliant
DOC+DPF Exhaust After Treatment
Automatic Fuel Bleed System
Dual Element Air Filter
Automatic Idle
Working Modes: Standard, ECO and High Altitude
Engine Preheat Starting Aid
High Capacity Radiator and Hydraulic Oil Cooler
High Capacity Fuel Filters
ELECTRICAL
Multi-Informational Display (canopy)
5.7" Color Multi-Informational Display (cab)
Sealed Rocker Switches
12 volt System with 55 amp Alternator
LED: Two Forward Facing and One on the Right and Left Sides
Travel Alarm
Horn
UNDERCARRIAGE AND FRAME
Triple Flanged Track Rollers
2-Speed Travel with Automatic Shift
High Torque Planetary Final Drive
Heavy Duty Dozer Blade with Float
Large Wrap Around Counterweight
15.7" Rubber Tracks
15.7" Steel Tracks (optional)
15.7" Segmented Rubber Tracks (optional)
Power Angle Blade with Float and Bolt-on Cutting Edge (optional)
OPERATOR'S STATION
ROPS / OPG Level 1 Four Post Canopy
Deluxe High Back Suspension Seat
Adjustable Arm Rests
12v Power Outlet
2" Retractable Seat Belt
3" Retractable Seat Belt (optional)
Cab with Air Conditioner, Heat, Defrost, Windshield Wiper and Washer, Skylight with Sunshade, AM / FM / MP3 / Bluetooth Radio (optional)
HYDRAULIC & WORKING EQUIPMENT
Variable Displacement, Open Center Hydraulics
Cushioned Boom, Arm, and Swing Cylinders
Hydraulic Pilot Controls
Proportional Auxiliary Controls with Detent
Adjustable Auxiliary Flow
Large Hydraulic Reservoir with Fluid Level Sight Gauge
Primary Auxiliary Hydraulic Circuit Plumbed to Arm
Multiple Attachment Presets
Flow Selector Valve, Primary Auxiliary Circuit
Pattern Change Valve (ISO or SAE)
Boom Holding Valve with Lift Overload Alarm
Pilot Accumulator
Main Boom Cylinder Guard
Long Arm with Integrated Thumb Mount
Dual Pin Position Bucket (optional)
Mechanical Bucket Quick Coupler (optional)
Main Pin Hydraulic Thumb (optional)

Specifications

OPERATING PERFORMANCE
Operating Weight - Canopy10,957 lb(4,970 kg)
Operating Weight - Cab 11,288 lb(5,120 kg)
Maximum Bucket Breakout Force10,430 lb (4,731 kg)
Maximum Arm Digging Force5,261 lb(2,386 kg)
Arm Length5 ft 9.2 in(1,760 mm)
Slew Speed9.5 rpm
Traction Force12,320 lb(5,588 kg)
Ground Pressure - Cab (Rubber)4.2 psi(29.0 kPa)
Ground Pressure - Cab (Steel)4.4 psi(30.0 kPa)
Travel Speed - Low Range1.7 mph(2.8 km / hr)
Travel Speed - High Range3.2 mph(5.2 km / hr)
HYDRAULIC SYSTEM
Total Hydraulic Flow40.9 gpm(155.3 L / min)
Auxiliary Flow - Primary Circuit24.2 gpm(91.7 L / min)
Hydraulic System Pressure3,481 psi(24.0 MPa)
ENGINE
Make / ModelYanmar / 4TNV88C-PTB
Displacement133.6 cu in(2.2 L)
Horsepower @ 2,400 rpm39.0 hp(29.1 kW)
Maximum Torque @ 1,440 rpm106.9 ft-lb(144.9 Nm)
FLUID CAPACITIES
Engine Lubrication7.8 qt(7.4 L)
Cooling System7.4 qt(7.0 L)
Fuel Tank Capacity18.5 gal(70.0 L)
Fuel Consumption (65% of Full Load)1.45 gal / min(5.5 L / hr)
Hydraulic Reservoir Capacity11.9 gal(45.0 L)
Hydraulic System Capacity25.1 gal(95.0 L)

Dimensions

MACHINE DIMENSIONS
Maximum Reach20 ft 1.0 in(6,120 mm)
Maximum Reach at Ground Level19 ft 7.6 in(5,985 mm)
Maximum Digging Depth12 ft 4.8 in(3,780 mm)
Maximum Vertical Digging Depth9 ft 9.5 in(2,985 mm)
Maximum Dig Height18 ft 6.6 in(5,655 mm)
Maximum Dumping Height13 ft 3.3 in(4,045 mm)
Front Swing Radius7 ft 7.7 in(2,330 mm)
Front Swing Radius with Boom Offset6 ft 0.8 in(1,850 mm)
Tail Swing (Slew) Radius4 ft 5.5 in(1,360 mm)
Transport Length18 ft 0.3 in(5,495 mm)
Transport Height8 ft 5.2 in(2,570 mm)
Ground Clearance13.2 in(335 mm)
Undercarriage Length8 ft 2.4 in(2,500 mm)
Track Width (Rubber)15.7 in(400 mm)
Undercarriage Width6 ft 0.0 in(1,839 mm)

Takeuchi Fleet Management

TAKEUCHI FLEET MANAGEMENT
2 Year Standard Service
Minimize Downtime
Remote Diagnostics
Utilization Tracking
Proactive Maintenance
Control Costs

TFM Brochure

Four Pillars

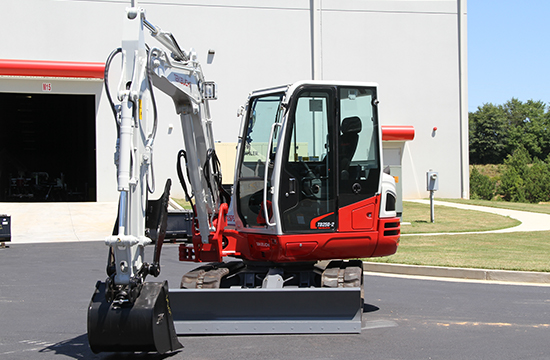

Designed for Success – The TB250-2 design features a rounded body for improved visibility and functionality, and the conventional tail swing with reduced overhang provides outstanding stability.

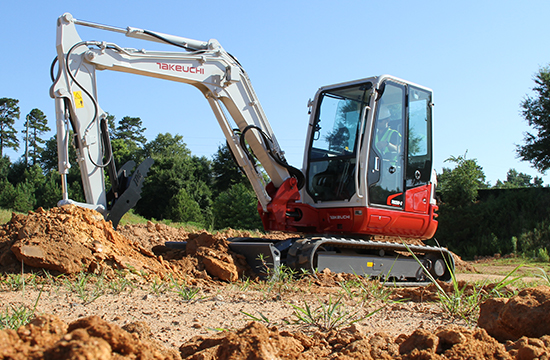

Powerful Dig Forces – The arm and bucket on the TB250-2 deliver exceptional arm crowd and bucket breakout forces ensuring you have the power to complete the toughest tasks. Takeuchi buckets and couplers feature dual pin positions to adapt to your application.

Standard Primary Auxiliary Circuits – Are plumbed to mid arm for greater attachment versatility.

Automatic Step Down Travel Motors – Provide torque on demand when pushing, climbing, or turning in high speed mode.

Optional Power Angle Blade – Angles 25° left and right greatly reducing the time required to backfill, and the additional float function makes it easier than ever to clean-up.

All Steel Construction – Protects components and ensures long term durability.

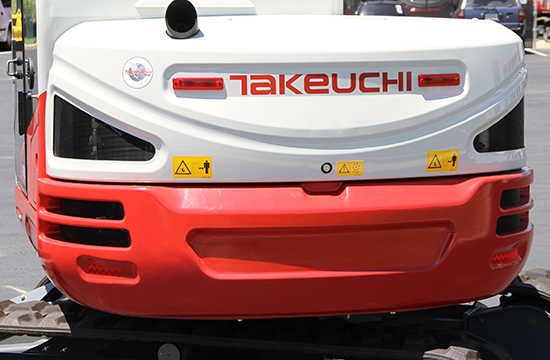

Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.

Heavy Duty Blade – Integrated gusset reinforcements and large blade cylinder give you the strength and durability you expect from the class leader.

Shut-off Valves – Simplify attachment installation and limit the release of hydraulic oil when changing attachments

Triple Flange Track Rollers – Provide increased roller to rail contact improving track retention.

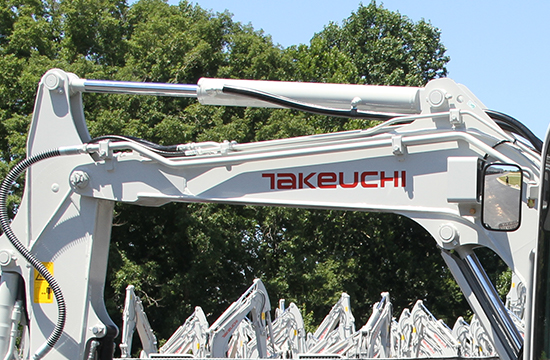

Reduced Shock – Cushioning on the boom and arm cylinders improves component longevity and operator comfort.

LCD Multi-Informational Display – Is easy to read in all light conditions and provides the operator with outstanding functionality and valuable machine data.

Spacious Automotive Styled Interior – Ensures operator comfort and provides a functional work area with a large multi-information display, and various function switches to improve performance.

Deluxe High Back Suspension Seat – Provides weight adjustment along with fore and aft movement and is also equipped with a 2 inch retractable seat belt.

Pilot Operated Joystick Controls – Deliver precise responsive controls, and are low effort reducing fatigue.

Large Travel Pedals – Fully support the operator’s feet for greater comfort and control while traveling. Additionally, pedals are raised off floor to reduce build-up of dirt and debris that can limit or impede travel functions.

Top Glass with Sun Shade – Improves visibility for truck loading or to overhead obstacles, such as, power lines, and the additional sun shade reduces glare for greater operator comfort.

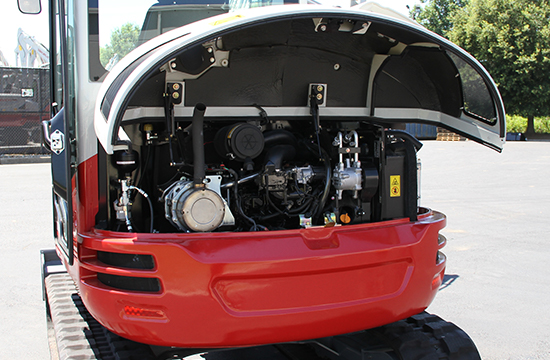

Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.

None Better – The service access hood eliminates the tilt-up cabin, and provides outstanding access to the control valve, hydraulic lines, hydraulic tank, and pattern change valve.

Heavy Duty Cooling System – The side by side radiator and hydraulic oil cooler features increased cooling capacity and are easy to inspect, clean and maintain.

Lockable Fuel Fill – Is convenient and secure. A remote gauge is also provided for assistance when refueling. The system also uses a self bleeding system to provide easier restarts if the machine is run out of fuel.

Keep it Clean – Improved fuel filtration and the use of low sulfur fuel will ensure proper engine performance.
