TB2150 Compact Excavator

The TB2150 is the largest and most powerful excavator in the US Takeuchi line.  Unique in its class are the standard pivot boom and dozer blade increasing versatility.  The cab is completely redesigned and features a heated, air ride suspension seat, automatic climate control, and a color monitor panel to monitor machine performance and view the rear view camera.  Multiple auxiliary circuits are standard equipment and make the TB2150 an impressive attachment platform.

Product Details

Features

ENGINE
EPA Final Tier 4 Emission Compliant
Turbocharged
High Pressure Common Rail Fuel Injection
DOC+SCR Exhaust After Treatment
Automatic Fuel Bleed System
Dual Element Air Cleaner
Automatic Deceleration
Working Modes: Standard, Power and High Altitude
Automatic Belt Tensioner
Variable Speed Hydraulic Fan Drive
High Efficiency Fuel Filters
Automatic Preheat
ELECTRICAL
7" Multi-Informational Display
Sealed Rocker Switches
Rear View Camera
Beacon Socket and Lamp Switch
Hour Meter
Deluxe LED Light Package
Side Halogen Work Lights
Travel Alarm
Horn
UNDERCARRIAGE AND FRAME
Triple Flanged Track Rollers
2-Speed Travel with Automatic Shift
High Torque Planetary Final Drive
Heavy Duty Dozer Blade with Float
Wrap Around Counterweight
20" Rubber Tracks
24" Steel Tracks (optional)
20" Segmented Rubber Crawlers (optional)
OPERATOR'S STATION
Cab with Air Conditioner, Heat, Defrost, Windshield Wiper and Washer, Polycarbonate Skylight with Sunshade, AM / FM / MP3 Radio, 24v and 12v Power Outlet
ROPS / OPG Level 2 Protection
Deluxe High Back Air Ride Suspension Heated Seat
Adjustable Arm Rests
2" Retractable Seat Belt
Roof Guard
Front Window Guard (optional)
HYDRAULIC & WORKING EQUIPMENT
Variable Displacement, Open Center Hydraulics
Independent Boom Swing
Cushioned Boom and Arm Cylinders
Hydraulic Pilot Controls
Proportional Auxiliary Controls with Detent
Adjustable Auxiliary Flow
Dual Boom Cylinders
Primary and Secondary Auxiliary Hydraulic Circuit Plumbed to Arm
High Pressure Third Auxiliary Circuit
Multiple Attachment Presets
Flow Selector Valve, Primary Auxiliary Circuit
Pattern Change Valve (ISO or SAE)
High Capacity Hydraulic Oil Cooler
Pilot Accumulator
Long Arm
Arm and Boom Holding Valve with Lift Alarm
Pin Grabber Bucket Coupler (optional)
Main Pin Hydraulic Thumb (optional)

Specifications

OPERATING PERFORMANCE
Operating Weight - Cab (Rubber)34,646 lb(15,715 kg)
Operating Weight - Cab (Steel)35,274 lb(16,000 kg)
Operating Weight - Cab (Segmented Rubber) 34,976 lb(15,865 kg)
Maximum Bucket Breakout Force22,190 lb(10,065 kg)
Maximum Arm Digging Force14,590 lb(6,618 kg)
Arm Length8 ft 5.0 in(2,570 mm)
Slew Speed10.8 rpm
Traction Force32,600 lb(14,786 kg)
Ground Pressure - Cab (Rubber)6.83 psi(47.1 kPa)
Ground Pressure - Cab (Steel)6.92 psi(47.7 kPa)
Max Travel Speed
Low Range1.9 mph(3.1 km / hr)
High Range3.4 mph(5.5 km / hr)
ENGINE
Make / ModelDeutz / TCD 3.6 L4 - Turbo
Displacement221.0 cu in(3.6 L)
Horsepower @ 2,000 rpm114.0 hp(85.0 kW)
Maximum Torque @ 1,600 rpm339.3 ft-lb(460.0 Nm)
HYDRAULIC SYSTEM
Total Hydraulic Flow78.9 gpm(293.0 Lpm)
Auxiliary Flow - Primary Circuit59.0 gpm(224.0 Lpm)
Auxiliary Flow - Secondary Circuit14.5 gpm(55.0 Lpm)
Hydraulic System Pressure4,977 psi(34.3 MPa)
FLUID CAPACITIES
Engine Lubrication10.6 qt(10.0 L)
Cooling System21.1 qt(20.0 L)
Fuel Tank Capacity73.4 gal(278.0 L)
Fuel Consumption (65% of Full Load)3.84 gal / hr(14.5 L / hr)
Hydraulic Reservoir Capacity28.1 gal(107.0 L)
Hydraulic System Capacity42.3 gal(160.0 L)

Dimensions

MACHINE DIMENSIONS
Maximum Reach28 ft 8.9 in (8,760 mm)
Maximum Reach at Ground Level28 ft 1.2 in(8,565 mm)
Maximum Digging Depth18 ft 0.0 in (5,486 mm)
Maximum Vertical Digging Depth15 ft 2.5 in (4,635 mm)
Maximum Dig Height28 ft 5.0 in(8,670 mm)
Maximum Dumping Height20 ft 4.9 in (6,220 mm)
Front Swing Radius9 ft 11.0 in (3,015 mm)
Front Swing Radius with Boom Offset7 ft 10.0 in(2,405 mm)
Slew Radius6 ft 6.7 in(2,000 mm)
Transport Length25 ft 7.3 in(7,805 mm)
Transport Height9 ft 8.5 in(2,960 mm)
Ground Clearance1 ft 7.0 in(475 mm)
Track Overall Length11 ft 10.3 in(3,615 mm)
Track Width (Rubber)20.0 in(500 mm)
Track Overall Width8 ft 2.0 in(2,490 mm)

Takeuchi Fleet Management

TAKEUCHI FLEET MANAGEMENT
2 Year Standard Service
Minimize Downtime
Remote Diagnostics
Utilization Tracking
Proactive Maintenance
Control Costs

TFM Brochure

Four Pillars

Deluxe LED Work Lights – Provide excellent illumination in low light conditions.

Rear Camera – Allows the operator to view obstacles behind the machine for added peace of mind.

Heavy Duty Blade with Float – It is ideal for site clean-up and finish work.

Automatic Step Down Travel Motors – Provide torque on demand when pushing, climbing, or turning in high speed mode.

Dual Auxiliary Hydraulics Plumbed to Mid Arm – Allow the TB2150 to be a versatile attachment platform.

Pivot Boom – Allows the TB2150 to dig in the offset right and left positions for greater versatility.

Cushioned Hydraulic Cylinders – Reduce operator fatigue and improve component longevity.

Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.

Powerful Turbocharged Engine – Provides increased horsepower and greater torque for improved performance.

Triple Flange Track Rollers – Provide increased roller to rail contact improving track retention.

Hydraulic Cooling Fan – Reduces noise levels and improves efficiency.

All Steel Construction – The engine hood, side covers and access panels are all steel for increased durability.

Top Glass with Sun Shade – Improves visibility for truck loading or to overhead obstacles, such as, power lines, and the additional sun shade reduces glare for greater operator comfort.

Deluxe High Back, Heated Air Ride Suspension Seat – Provides weight adjustment along with fore and aft movement and is also equipped with a 2 inch retractable seat belt.

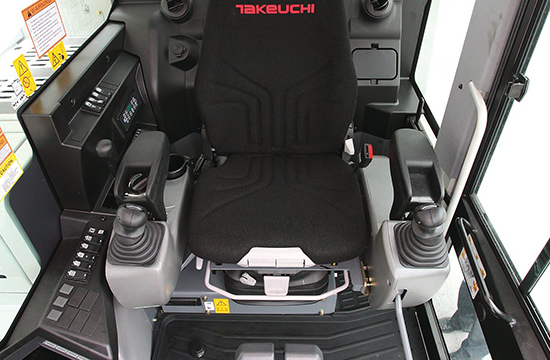

Operator’s Station – Comes standard with an automotive styled interior, intuitive controls, a large 7″ color multi-informational display, and automatic climate control.

Pilot Operated Joystick Controls – Deliver precise responsive controls, and are low effort reducing fatigue.

Automatic Climate Control – Allows the operator to choose a preferred temperature for maximum comfort throughout the year.

Spacious Floor – Allows the operator to be comfortable throughout the workday, and the large foot pedals fully support the operator’s feet when using the travel function.

Exhaust After-Treatment System – Includes a maintenance free diesel oxidation catalyst (DOC), and a selective catalytic reduction (SCR) with diesel exhaust fluid (DEF) to meet to latest EPA Tier 4 emissions requirements.

Right Rear Access Panel – Allows access to the pilot line filter and pump group.

Left Side Access Cover – Provides excellent access to the dual element air cleaner and batteries.

Front Right Access Panel – Provides access to the primary and secondary fuel filters, water separator, DEF fluid pump, and large storage area for tools

Convenient Access – Oil fill, filter, and dipstick are conveniently positioned for easy access.

Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.
