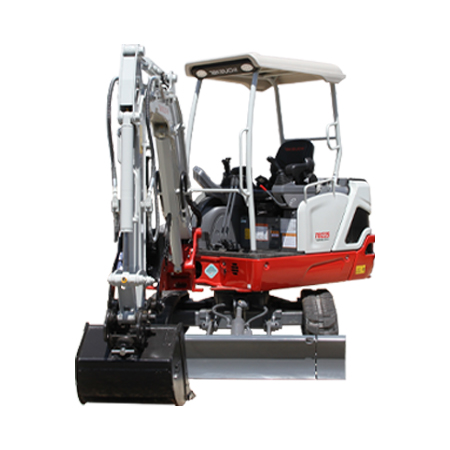

TB225 Compact Excavator

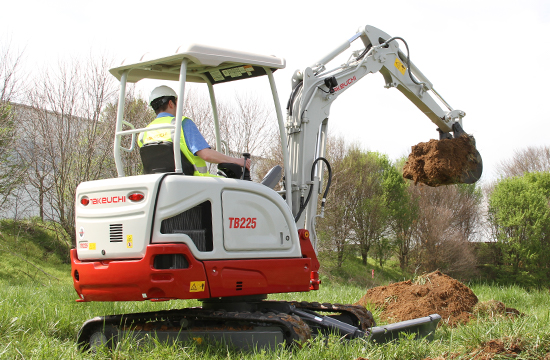

Designed to work in confined, demanding applications, the Takeuchi TB225 features many advancements in performance and technology that make it an extremely versatile and productive machine. The TB225 sets itself apart by combining features from smaller excavators, such as hydraulically retractable undercarriage, with features from larger excavators, such as electronic throttle control and electronic proportional auxiliary control. All day comfort is provided by an adjustable suspension seat, large floor with integrated foot rests, ergonomically designed pilot controls, and adjustable arm rests.

Product Details

Features

ENGINE
U.S. EPA Tier 4 Final Diesel
Mechanical Fuel Injection
40 Amp Alternator
Automatic Fuel Priming System
Automatic Engine Idle Feature
Automatic Cold Start Device
Dual Element Air Cleaner
Engine Safe Start System
UNDERCARRIAGE AND FRAME
Triple Flange Track Rollers
Load Sensing Two Speed Travel with Automatic Shift
Hydraulically Retractable Track Frame (43.3 in to 59.1 in)
Backfill Blade with Pin-on Extensions
Wraparound Protective Counterweight
Integrated Tie Down Points
9.8" Rubber Tracks
OPERATOR'S STATION
ROPS / TOPS / OPG Level 1 Four Post Canopy
LCD Multifunction Display
Hour Meter
Sealed Rocker Switches
12 volt Power Socket
Adjustable Suspension Seat
Hand Dial Electronic Throttle Control
Adjustable Arm Rests
Foot and Hand Travel Pedals
2" Retractable Seat Belt
Removable, Washable Floor Mat
Literature Holder and Toolbox
HYDRAULIC & WORKING EQUIPMENT
Variable Displacement, Open Center Hydraulics
Cushioned Boom and Swing Cylinders
Multifunction Joystick Controls
Proportional Auxiliary Controls with Detent
Auxiliary Circuit Flow Selector Valve
Auxiliary Circuit Plumbed to Mid Arm with Shut-off Valves
Automatic Slew Brake with Integrated Shockless Relief Valve
Hydraulic Reservoir with Fluid Level Sight Gauge
Auxiliary Flow Adjustable from Monitor
Easy Access Pattern Change Valve (ISO or SAE)
Pilot Pressure Accumulator Valve
LED Work Lights
Travel Alarm
Long Arm with Integrated Thumb Mount
Boom Swing Function
Main Boom Cylinder Guard
Dual Pin Position Bucket (optional)
Mechanical Bucket Quick Coupler (optional)
Main Pin Hydraulic Thumb (optional)

Specifications

OPERATING PERFORMANCE
Operating Weight4,993 lb(2,265 kg)
Maximum Bucket Breakout Force4,339 lb(1,968 kg)
Maximum Arm Digging Force2,877 lb(1,305 kg)
Arm Length4' 1.0"(1,245 mm)
Slew Speed8.9 min-1
Traction Force6,003 lb(2,723 kg)
Ground Pressure4.2 psi(29.0 kPa)
Travel Speed - Low1.6 mph(2.5 km / hr)
Travel Speed - High2.6 mph(4.2 km / hr)
HYDRAULIC SYSTEM
Total Hydraulic Flow16.6 gpm(62.8 L / min)
Auxiliary Flow - Primary Circuit9.96 gpm(37.7 L /min)
Hydraulic System Pressure3,045 psi(21.0 MPa)
ENGINE
Make / ModelYanmar / 3TNV80F
Displacement77.3 cu in(1,267 cc)
Horsepower @ 2,400 rpm19.6 hp(14.6 kW)
Maximum Torque @ 1,800 rpm49.7 ft-lb(67.4 Nm)
FLUID CAPACITIES
Engine Lubrication3.6 qt(3.4 L)
Cooling System4.2 qt(4.0 L)
Fuel Tank Capacity8.1 gal(30.5 L)
Fuel Consumption (65% of Full Load)0.80 gal / hr(3.03 Lph)
Hydraulic Reservoir Capacity6.87 gal(26.0 L)
Hydraulic System Capacity11.9 gal(45.0 L)

Dimensions

MACHINE DIMENSIONS
Maximum Reach14' 4.2"(4,375 mm)
Maximum Reach at Ground Level13' 11.3"(4,250 mm)
Maximum Digging Depth8' 5.5"(2,580 mm)
Maximum Vertical Digging Depth6' 10.7"(2,100 mm)
Maximum Height of Cutting Edge13' 3.8"(4,060 mm)
Maximum Dumping Height9 ' 5.2"(2,875 mm)
Front Swing Radius6 ' 0.0"(1,830 mm)
Front Swing Radius with Boom Offset4' 10.4"(1,485 mm)
Slew Radius4' 0.8"(1,240 mm)
Overall Length13' 8.5"(4,180 mm)
Overall Height7' 8.8"(2,355 mm)
Upper Structure Overall Width3' 7.3"(1,100 mm)
Ground Clearance7.5"(190 mm)
Track Ground Contact Length4' 7.7"(1,415 mm)
Crawler Overall Length5' 10.4"(1,790 mm)
Crawler Retracted3' 7.3"(1,100 mm)
Crawler Overall Width4' 11.0"(1,500 mm)
Crawler Shoe Width9.8"(250 mm)

Takeuchi Fleet Management

TAKEUCHI FLEET MANAGEMENT
2 Year Standard Service
Minimize Downtime
Remote Diagnostics
Utilization Tracking
Proactive Maintenance
Control Costs
Geofencing

TFM Brochure

Download Brochure

View Video

Four Pillars

Power Train

  • 19.6 HP Yanmar 3TN-V80F Engine, 49.7 ft-lb Torque
  • U.S. EPA Tier 4 Final Diesel
  • Electronic Dial Type Throttle Control
  • Automatic Fuel Priming System
  • Automatic Engine Idle

Hydraulic Performance

  • Auxiliary Circuit Plumbed to Mid-Arm
  • Shut-off Valve Blocks on Auxiliary Circuit
  • Auxiliary Flow Adjustable through Multifunction Monitor
  • Detent Control for Auxiliary Circuit
  • Easy Access Pattern Change Valve

Work Equipment

  • Long Arm with Integrated Thumb Mount
  • Powerful Bucket Breakout and Arm Crowd Forces
  • Wide Working Range
  • Boom Swing for Digging Offset Right/Left
  • Buckets and Coupler Feature Dual Pin Positions for Greater Bucket Breakout Force

Undercarriage and Frame

  • Hydraulically Retractable Track Frame to get through Tight Spaces
  • Load Sensing Two Speed Travel Motors with Automatic Step Down
  • Powerful Traction Force
  • Triple Flange Rollers Provide Multiple Contact Points with the Track Making it Less Susceptible to Detracking

Blade

  • Blade with Pin-on Extensions to Match Undercarriage Width
  • Blade Float
  • Curved Blade Design Keeps Material Rolling to the Front
  • Integrated Anchor Points

Heavy Duty Construction

  • Heavy Gauge Steel Construction
  • Large Heavy Duty Hinges on Engine Hood and Swing Out Service Panel
  • Integrated Tie Down Points
  • Lockable Service Hoods

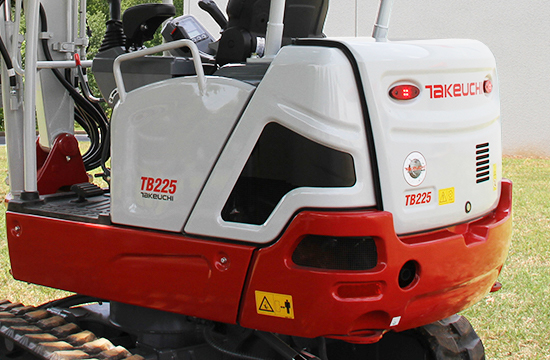

Added Protection

  • Wraparound Protective Counterweight
  • Concealed Travel Motor Connections
  • Boom Cylinder Guard
  • Auxiliary Hydraulic Lines Feature a Steel Spiral Wrap for Greater Protection

Cushioned Cylinders

  • Cushioned Boom and Swing Cylinders
  • Reduces Shock Improving Longevity of Cylinders
  • Less Felt Recoil by the Operator when Working

Undercarriage and Frame

  • Heavy Duty Frame
  • Triple Flange Rollers Support the Track in Multiple Positions Improving Track Life and Stability
  • Upper Roller Maintains Track Alignment and Help Shed Debris
  • Sloped Design on Track Frame Allows for Easier Clean-out and Reduces Material Retention
  • Guard Protects Track Tensioning Grease Zerk from Damage and Debris

Blade

  • Two Gussets on Each Side of the Blade Frame Add Additional Strength
  • Box Frame Design on the Rear Center of the Blade Provides Enhanced Rigidity
  • Blade Extensions are Held in Place Using Large Heavy Duty Pins
  • Hydraulic Lines for Blade Cylinder Feature a Steel Spiral Wrap for Greater Protection

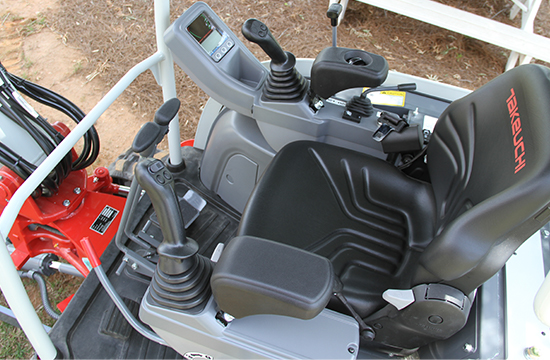

Operator’s Station

  • Spacious Flat Floor Area with Footrests and Removable Floor Mat
  • Suspension Seat Equipped with 2″ Retractable Seat Belt Features Fore / Aft, Tilt and Weight Adjustments
  • Short Stroke Joysticks are Low Effort and Precise
  • Adjustable Arm Rests
  • Wide, Easy Entry/Exit Cabin

Multifunction Display

  • Real Time Machine Health and Vitals
  • Simple Auxiliary Flow Rate Adjustments
  • Multiple Attachment Presets
  • Unobstructed View
  • Easy to See In Various Lighting Conditions

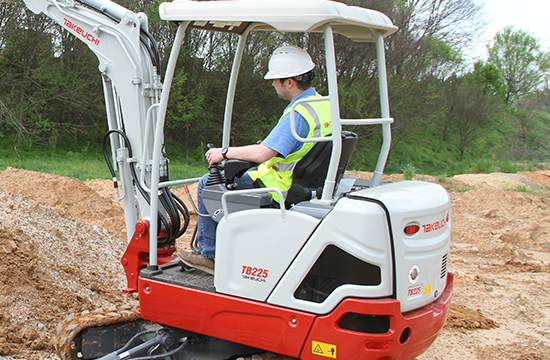

Peace of Mind

  • Open Canopy Design Delivers 360 Degree Visibility Around Machine
  • Four Post Canopy Provides ROPS/TOPS/ OPG Level 1 Certified Protection
  • LED Work Light Package Ensure Excellent Visibility in Low Light Conditions
  • Safe Start System Requires Lockout Lever to be in the Raised Position in Order to Start the Machine
  • Multiple Hand Rails at Cabin Entry Help Maintain Three Points of Contact when Entering and Exiting the Machine

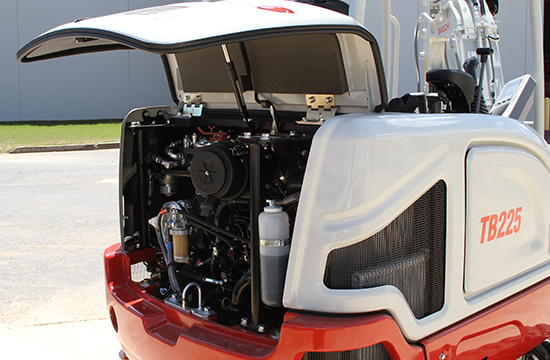

Rear Service

  • Lockable Engine Hood Opens Overhead for Access to Daily Inspection and Maintenance Points
  • Easy Access to Engine Oil Dipstick, Engine Oil Fill, Engine Oil Filter, Fuel Filter with Shut-off and Coolant Reservoir
  • ISO/SAE Pattern Change Valve
  • Pilot Line Filter and Pump Group/Test Ports

Right Side Service

  • Lockable Swing-out Steel Maintenance Panel
  • Simple Fuel Fill and Sight Gauge
  • Steel Hydraulic Tank with Fill, Filter Access, and Sight Gauge
  • Easy Battery Access
