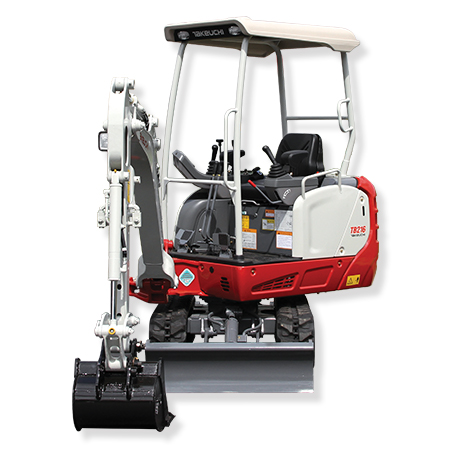

TB216 Compact Excavator
TB216 provides the operator with a nice blend of power and functionality. It is completely redesigned for greater operator comfort, performance, and serviceability.
Features
| ENGINE |
|---|
| EPA Final Tier 4 Emission Compliant |
| Engine Preheat |
| Dual Element Air Filters |
| Automatic Fuel Bleed System |
| ELECTRICAL |
| Multi-Informational Display |
| Visual Indicator for Engine Preheat, High Speed, Water Temp and Fuel Gauge |
| Function Keys Transition Between Hour / Trip Meter, Time and Alarm, and Contrast Adjustment |
| Hour Meter |
| Travel Alarm |
| UNDERCARRIAGE AND FRAME |
| Triple Flanged Track Rollers |
| Hydraulically Retractable Track Frame |
| Automatic Load Sensing 2 Speed Travel |
| Adjustable Width Backfill Blade |
| Cast Iron Wrap Around Protective Counterweight |
| 9" Rubber Track |
| OPERATOR'S STATION |
| ROPS / TOPS / FOPS Four Post Canopy |
| Pattern Change Valve (ISO or SAE) |
| Suspension Seat with Fore and Aft Adjustments |
| Auxiliary Hydraulics Controlled with Foot Pedal |
| 2" Retractable Seat Belt |
| 3" Non-retractable Seat Belt (optional) |
| HYDRAULIC & WORKING EQUIPMENT |
| Variable Displacement Piston Pumps |
| Cushioned Boom and Swing Cylinders |
| Pilot Operated Joystick Controls |
| Hydraulic Oil Cooler |
| Steel Hydraulic Tank with Fluid Level Sight Gauge |
| Primary Auxiliary Circuit Plumbed to Arm with 1-Way and 2-Way Operation |
| Top Mount Boom Cylinder |
| Hydraulic Hoses Protected Inside of Boom and Arm |
| Long Arm with Integrated Thumb Mount |
| Dual Pin Position Bucket (optional) |
| Mechanical Bucket Quick Coupler (optional) |
| Main Pin Hydraulic Thumb (optional) |
Specifications
| OPERATING PERFORMANCE | ||
|---|---|---|
| Operating Weight | 3,900 lb | (1,770 kg) |
| Max. Bucket Breakout Force | 4,250 lb | (1,928 kg) |
| Max. Arm Digging Force | 1,843 lb | (836 kg) |
| Arm Length | 3 ft 8.5 in | (1,130 mm) |
| Slew Speed | 9.2 rpm | |
| Traction Force | 4,361 lb | (1,978 kg) |
| Ground Pressure | 4.3 psi | 29.4 kPa |
| Travel Speed - Low | 1.4 mph | (2.2 km / hr) |
| Travel Speed - High | 2.6 mph | (4.2 km / hr) |
| HYDRAULIC SYSTEM | ||
| Total Hydraulic Flow | 13.4 gpm | (50.9 L / min) |
| Auxiliary Hydraulic Flow | 8.9 gpm | (33.6 L / min) |
| Hydraulic System Pressure | 3,046 psi | (21.0 Mpa) |
| ENGINE | ||
| Model / Make | Yanmar / 3TNV74 | |
| Displacement | 60.2 cu in | (.98 L) |
| Horsepower @ 2,400 rpm | 15 hp | (11.2 kW) |
| Max. Torque @ 1,800 rpm | 38.2 ft-lb | (51.8 Nm) |
| FLUID CAPACITIES | ||
| Engine Lubrication | 4.5 qt | (4.3 L) |
| Cooling System | 4.0 qt | (3.8 L) |
| Fuel Tank Capacity | 5.8 gal | (22.0 L) |
| Hydraulic Reservoir Capacity | 4.2 gal | (16.0 L) |
| Hydraulic System Capacity | 6.5 gal | (24.5 L) |
Dimensions
| MACHINE DIMENSIONS | ||
|---|---|---|
| Maximum Reach | 13 ft 5.0 in | (4,090 mm) |
| Maximum Reach at Ground Level | 13 ft 2.9in | (4,035 mm) |
| Maximum Digging Depth | 7 ft 10.0 in | (2,390 mm) |
| Maximum Vertical Digging Depth | 6 ft 9.1 in | (2,060 mm) |
| Maximum Dig Height | 12 ft 3.2 in | (3,740 mm) |
| Maximum Dumping Height | 8 ft 10.5 in | (2,705 mm) |
| Front Swing Radius | 4 ft 10.3 in | (1,480 mm) |
| Front Swing Radius with Boom Offset | 3 ft 9.4 in | (1,155 mm) |
| Tail Swing (Slew) Radius | 3 ft 6.3 in | (1,075 mm) |
| Transport Length | 12 ft 8.3 in | (3,870 mm) |
| Transport Height | 7 ft 4.8 in | (2,255 mm) |
| Ground Clearance | 8.1 in | (205 mm) |
| Undercarriage Length | 4 ft 11.9 in | (1,520 mm) |
| Track Width (Rubber) | 9.0 in | (230 mm) |
| Undercarriage Width - Track Retracted | 38.6 in | (980 mm) |
| Undercarriage Width - Track Extended | 51.2 in | (1,300 mm) |
Takeuchi Fleet Management
| TAKEUCHI FLEET MANAGEMENT |
|---|
| 2 Year Standard Service |
| Minimize Downtime |
| Remote Diagnostics |
| Utilization Tracking |
| Proactive Maintenance |
| Control Costs |
| Geofencing |
Four Pillars

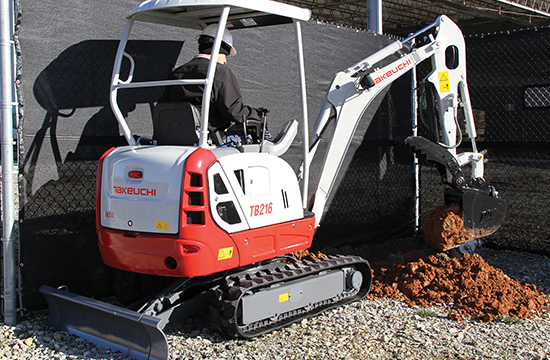

Compact and Convenient – The TB216 delivers excellent size and balance for restricted job sites.
EPA Final Tier 4 Engine – Is efficient and powerful and does not require any exhaust after-treatment systems.
Excellent Reach – The optimized boom and arm design delivers excellent reach for greater productivity.
Retractable Undercarriage – Allows this machine to travel through standard doorways and areas with limited access with ease.
Drive System – Provides 15% more tractive force that the previous machine and now features automatic downshift for better turning, traveling and backfilling.
Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.
Top Mount Boom Cylinder – Helps protect the boom cylinder from damage from the bucket and debris.
Protected Hydraulic Plumbing – All hoses for working equipment are routed through the boom and arm for an extra level of protection, and greater visibility of the work equipment.

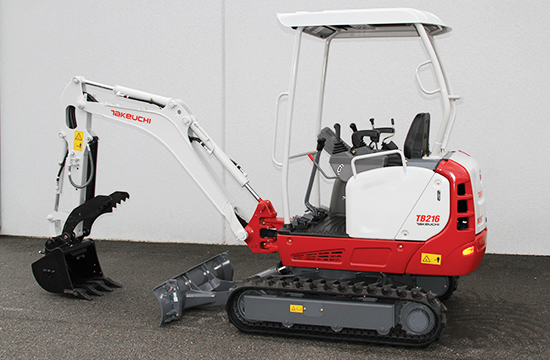

All Steel Construction – Protects components and ensures long term durability.

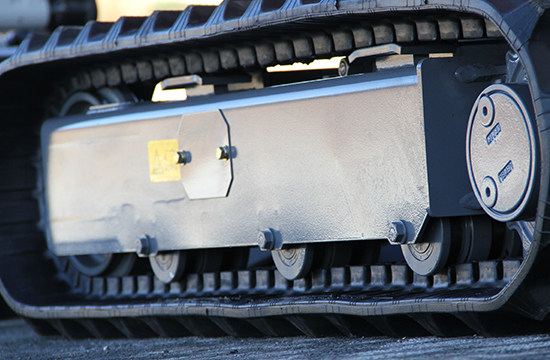

Triple Flange Track Rollers – Provide increased roller to rail contact improving track retention.
Multi-Information Display – Is easy to read in all lighting conditions and keeps the operator informed on the status of the machine.
Operator’s Station – Delivers excellent visibility and operator comfort while providing easy entry and exit.

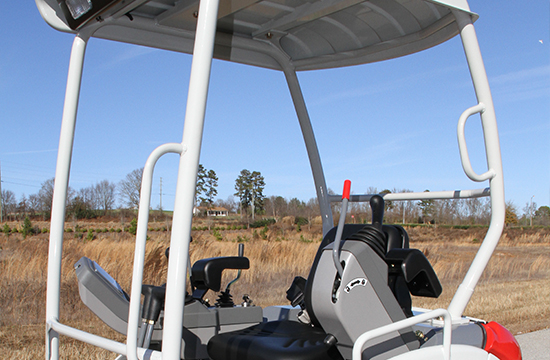

Four Post ROPS Canopy – Offers operator protection and peace of mind.
Suspension Seat – Provides weight adjustment along with fore and aft movement and is also equipped with a 2 inch retractable seat belt.
Adjustable Arm Rest – Help provide a comfortable operating position for the precision pilot controls.
Pattern Change Valve – Will allow the operator to choose their preferred operational pattern for greater efficiency and safety.
High Capacity Cooling System – Uses heavy duty side-by-side radiator and hydraulic cooler for optimum cooling.
Lockable Fuel Fill – Is convenient and secure. A remote gauge is also provided for assistance when refueling. The system also uses a self bleeding system to provide easier restarts if the machine is run out of fuel.
Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.
Under Seat Component Access – The battery and electrical components are conveniently located under the operators seat along with the pattern change valve.
