TL12V2 Compact Track Loader

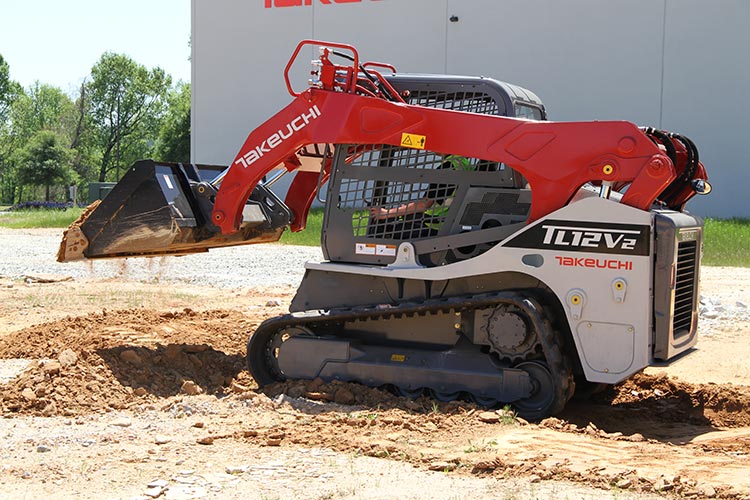

The TL12V2 features a vertical lift loader arrangement and sets another benchmark for compact track loaders by delivering one of the most capable and innovative machines available to the market today.  The cab has been enlarged and features a smooth low effort overhead door design for improved entry and egress. A quiet ride track design with flotation pads reduces vibration, noise levels, and improves ride quality.

Product Details

Features

ENGINE
EPA Final Tier 4 Emission Compliant
Turbocharged and Intercooled
DOC+DPF+SCR Exhaust After Treatment
High Pressure Common Rail Injection System
Active Power Control Power Management System
Selectable Work Modes - Power and ECO
Dial Throttle Control
Automatic Fuel Bleed System
Extended Life Coolant
High Capacity Radiator, Hydraulic Oil Cooler and Intercooler Mounted Side-by-Side on Swing Out Frame
Duel Element Air Cleaner
ELECTRICAL
12 volt System with 80 amp Alternator
Heavy Duty, Quick Access Battery
LED Work Lights, Front and Rear
5.7" Color Multi-Informational Display with Rear Camera
Sealed Rocker Switches
Back-up Alarm
Horn
UNDERCARRIAGE AND FRAME
17.7" Quiet Track Design with Wide Block Tread
Long Track Frame
Fully Welded Frame with Integrated Cross Members
Rear Bumper Integrated into Frame
Front and Rear Tie-Down and Lift Points
Permanently Sealed Track Rollers with Metal Face Seals
Double Reduction Planetary Drives
2 Speed Travel
OPERATOR'S STATION
Pilot Operated Controls
Deluxe High Back Adjustable Suspension Seat
Rear Pivoting Seat Bar with Integrated Arm Rests
ROPS/FOPS Structure
Retractable 2" Seat Belt
3 Point Seat Belt (optional)
FOPS Level 2 Roof Guard (optional High Flow)
Polycarbonate Front Door (optional High Flow)
Pressurized Cab with Roll-up Door, Air Conditioning, Heat, Defrost, Front/Rear Wiper and AM/FM/MP3 Radio (Cab Only)

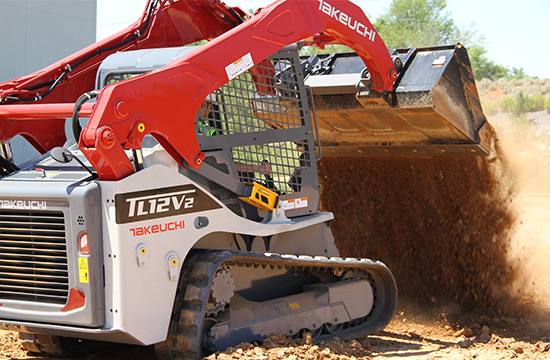

HYDRAULIC & WORKING EQUIPMENT
Vertical Lift Loader Design
Heavy Duty Low Cross Member
Cushioned Boom Cylinders
Boom Float with Detent
Hydraulic Pilot Controls
Proportional Auxiliary Controls with Detent
Pressure Relieving Flat Faced Coupler Body
Hydraulic Self Leveling (ON/OFF)
Mechanical Quick Coupler
Hydraulic Quick Coupler (standard on cab units)
14-Pin Connector with Push Button Control (optional)
Primary Flow Auxiliary Hydraulics 23.2 gpm
High Flow Auxiliary Hydraulics 40.4 gpm (optional)
Secondary Auxiliary Circuit 23.2 gpm (optional)
Ride Control (optional)
Control Pattern Change Valve (ISO or H) (optional)

Specifications

OPERATING PERFORMANCE
Operating Weight - Canopy12,860 lbs(5,835 kg)
Operating Weight - Cab13,190 lbs(5,985 kg)
Tipping Load11,737 lbs(5,324 kg)
Rated Operating Capacity @ 35%*4,107 lbs(1,863 kg)
Operating Load @ 50% of Tip Load5,868 lbs(2,662 kg)
Bucket Breakout Force7,874 lbs(3,571 kg)
Lift Arm Breakout Force7,109 lbs(3,225 kg)
Traction Force14,006 lbs(6,353 kg)
Ground Pressure4.8 psi(33.0 kPa)
Travel Speed - Low5.0 mph(8.1 km / hr)
Travel Speed - High7.3 mph(11.6 km / hr)
*Rated operating capacity of track loaders is rated according to SAE J818 at no more than 35% of the tipping load.
HYDRAULIC SYSTEM
Auxiliary Flow - Primary Circuit23.2 gpm(88.0 Lpm)
Auxiliary Flow - High Flow (optional)40.4 gpm(153.0 Lpm)
Auxiliary Flow - 2nd Circuit (optional)23.2 gpm(88.0 Lpm)
Hydraulic System Pressure3,481 psi(24.0 MPa)
ENGINE
Make / ModelKubota / V3800-TIF4B
Engine Displacement230 cu in(3.8 L)
Horsepower @ 2,400 rpm111.3 hp(83.0 kW)
Maximum Torque @ 1,500 rpm284 ft-lb(385 Nm)
FLUID CAPACITIES
Engine Lubrication13.9 qt(13.2 L)
Cooling System19.0 qt(18.0 L)
Diesel Exhaust Fluid (DEF)4.8 gal(18.0 L)
Fuel Tank Capacity32.7 gal(123.9 L)
Fuel Consumption (65% of Full Load)3.8 gal / hr(14.4 L / hr)
Hydraulic Reservoir Capacity13.2 gal(50.0 L)
Hydraulic System Capacity24.8 gal(94.0 L)

Dimensions

MACHINE DIMENSIONS
Max. Lift Height to Bucket Pin10 ft 10 in(3,299mm)
Dump Height Fully Raised8 ft 1.0 in(2,459 mm)
Max. Mid-Height Reach4 ft 8.0 in(1,416 mm)
Dump Reach Fully Raised3 ft .4 in(924 mm)
Dump Angle46.8°
Rollback Angle32°
Track Ground Contact Length5 ft 7.6 in(1,717 mm)
Machine Length10 ft 6.0 in(3,203 mm)
Transport Length13 ft 3.3 in(4,045 mm)
Transport Height7 ft 9.7 in(2,381 mm)
Departure Angle29°
Clearance Circle with Bucket8 ft 2.6 in(2,504 mm)
Clearance Circle without Bucket5 ft 3.4 in(1,610 mm)
Clearance Circle Rear6 ft 1.0 in(1,848 mm)
Track Width17.7 in(450 mm)
Ground Clearance12.2 in(310 mm)
Overall Width without Bucket6 ft 5.2 in(1,960 mm)

Takeuchi Fleet Management

TAKEUCHI FLEET MANAGEMENT
2 Year Standard Service
Minimize Downtime
Remote Diagnostics
Utilization Tracking
Proactive Maintenance
Control Costs

TFM Brochure

Four Pillars

Powerful and Efficient – The turbocharged, intercooled engine delivers an excellent blend of power and performance and it features a DOC+DPF +SCR exhaust after treatment system.

Vertical Lift Loader – Designed to deliver exceptional performance and improved tipping load and rated operating capacity.

Active Power Control – Maintains engine power for optimal performance, and it may be engaged or disengaged by the operator.

Quiet Ride Track – Allows rollers to ride on a rubber contact pad for reduced vibration and a quieter ride, and the wide block tread improves flotation.

Multiple Working Modes – Power mode delivers maximum power and performance. ECO mode reduces fuel consumption and is ideal for less demanding applications.

Front and Rear LED Work Lights – Provide excellent illumination in low light conditions for greater peace of mind.

Rear Bumper with Tie Downs – Delivers greater protection to the rear of the machine and simplifies anchoring the machine for transport.

Heavy Duty Cross Member – Protects bucket cylinders from damage and it has been lowered for improved attachment visibility.

High Capacity Cooling Module – Enables machine to run cooler and more efficiently for improved component life and attachment efficiency.

Purpose Built Frame – Features multiple cross members for greater strength and rigidity.

Oversized Pins and Bushings – For greater strength where it matters.

Heavy Duty Lift Cylinders – Are over built for greater durability and deliver excellent lifting performance.

Pilot Joystick Controls – Respond immediately to operator input for greater control and performance, and they are low effort for excellent comfort.

Rear View Camera- Allows operator full view of the rear of the machine on the in cab 5.7″ color display.

Deluxe High Back Suspension Seat – Allows the operator to remain comfortable through out the workday by providing a wide array of settings that include adjustments for height which also improves attachment visibility.

Electronic Dial Throttle and Foot Throttle- Allows operator to choose dial or foot throttle or combination of the two to control desired engine speed.

Color Multi-Informational Display – Features a 5.7 full color display that provides the operator with pertinent machine information, allows the operator to adjust hydraulic flow from the seat, and has a wide range of attachment presets that can be set-up.

Advanced Interior Design – Features a spacious cabin, improved functionality, updated rocker switch layout, 12v accessory outlet, and multiple cup holders.

Hydraulic Oil Sight Gauge – Is easily seen by the operator as they enter the machine.

Alternator Accessibility – Is greatly improved due to the removable access panel located on the fan shroud.

Rear Tower Clean-outs – Are accessible through the right/left towers for convenience, easy inspection, and cleaning.

Simplified Battery Access – Is available through a bolt-on panel located on the left tower.

Clustered Fuel and Engine Oil Filters – Are positioned together beneath the tilt up cabin for greater convenience, and they spin-on from the bottom resulting in minimal clean-up.

Fuel and DEF Fluid Fill – Features an audible alarm that alerts the operator when the fluid level is nearing the fill point reducing spills and clean-up.
