TL10V2 Compact Track Loader

The TL10V2 features a vertical lift loader arrangement and is Final Tier 4 emissions compliant.  The cab is completely redesigned and enlarged and features a low effort overhead door design for improved entry and egress. A quiet track design with wide block tread reduces vibration, noise levels, and improves ride quality.

Product Details

Features

ENGINE
EPA Final Tier 4 Emission Compliant
Turbocharged
High Pressure Common Rail Injection System
DOC+DPF Exhaust After Treatment
Automatic Fuel Bleed System
Active Power Control Power Management System
Working Modes - Power and ECO
Dual Element Air Filter
High Capacity Radiator and Hydraulic Oil Cooler Mounted Side-by-Side on Swing Out Frame
ELECTRICAL
5.7" Color Multi-Informational Display with Rear Camera
Sealed Rocker Switches
12 volt System with 60 amp Alternator
LED: Two Front and Two Rear
Engine Preheat
Hour Meter
Back-up Alarm
Horn
UNDERCARRIAGE AND FRAME
Double Planetary Reduction Drives
Permanently Sealed Track Rollers with Metal Face Seals
Fully Welded Frame with Integrated Cross Members
2 Speed Travel
15.7" Rubber Track
Grease Type Track Adjuster
Front and Rear Tie-Down Points and Lift Points
Rear Bumper Integrated into Frame
OPERATOR'S STATION

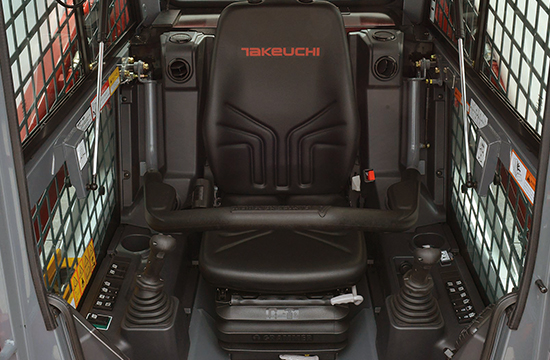

Tilt-up Operator's Station
Deluxe High Back Suspension Seat
Rear View Camera
Foot Throttle
Dial Throttle Control
Rear Pivoting Lap Bar with Arm Rest
ROPS / FOPS Structure
Retractable 2" Seat Belt
Pressurized Cab with Roll-up Door, A/C, Heat, Defrost and Front Wiper, and AM / FM / MP3 Radio with NOAA Weatherband (optional)
Retractable 3" Seat Belt (optional)
3 Point Retractable Seat Belt (optional)
Polycarbonate Door and Top Guard (High Flow Only)
HYDRAULIC & WORKING EQUIPMENT
Vertical Lift Design
Pilot Hydraulic Controls
Boom Float with Detent
Cushioned Boom Cylinders
Hydraulic Self Leveling
Proportional Auxiliary Hydraulic Controls with Detent
Pressure Relieving Flat Faced Coupler Body
14-Pin Connector with Push Button Control
High Capacity Steel Hydraulic Tank
Mechanical Quick Coupler
Hydraulic Quick Coupler Cab - Standard Equipment
Hydraulic Quick Coupler Canopy - optional
Primary Flow Auxiliary Hydraulics 18.8 gpm
High Flow Auxiliary Hydraulics 32.8 gpm (optional)
Secondary Auxiliary Hydraulics 18.8 gpm (optional)
Ride Control (optional)
Pattern Change Valve (ISO or H) (optional)

Specifications

OPERATING PERFORMANCE
Operating Weight - Canopy9,840 lb(4,460 kg)
Operating Weight - Cab10,150 lb(4,605 kg)
Tipping Load7,205 lb(3,268 kg)
Rated Operating Capacity (ISO 14397-1)@35%*2,522 lb(1,144 kg)
Operating Load at 50% of Tipping Load3,600 lb(1,633 kg)
Bucket Breakout Force6,520 lb(2,957 kg)
Lift Arm Breakout Force5,400 lb(2,450 kg)
Traction Force9,730 lb(4,413 kg)
Ground Pressure - Canopy4.9 psi(34.3 kPa)
Ground Pressure - Cab5.1 psi(35.4 kPa)
Travel Speed - Low4.8 mph(7.7 km/hr)
Travel Speed - High7.0 mph(11.3 km/hr)
*Rated operating capacity of track loaders is rated according to SAE J818 at no more than 35% of the tipping load.
HYDRAULIC SYSTEM
Auxiliary Flow - Primary Circuit18.8 gpm(71.2 Lpm)
Auxiliary Flow - High Flow (optional)32.8 gpm(124.0 Lpm)
Hydraulic System Pressure3,481 psi(21.0 MPa)
ENGINE
Make / ModelKubota / V3307CR-TE4B
Engine Displacement203 cu in(3.3 L)
Horsepower @ 2,600 rpm74.3 hp(55.4 kW)
Maximum Torque @ 1,500 rpm195 ft-lb(265.0 Nm)
FLUID CAPACITIES
Engine Lubrication11.8 qt(11.2 L)
Cooling System15.9 qt(15.0 L)
Fuel Tank Capacity21.5 gal(81.0 L)
Fuel Consumption (65% of Full Load)2.7 gpm(10.3 L /hr)
Hydraulic Reservoir Capacity9.5 gal(36.0 L)
Hydraulic System Capacity17.2 gal(65.0 L)

Dimensions

MACHINE DIMENSIONS
Max. Lift Height to Bucket Pin10 ft 4.8 in(3,169 mm)
Dump Height Fully Raised7 ft 11.9 in(2,435 mm)
Dump Reach Fully Raised3 ft 1.4 in(950 mm)
Dump Angle40°
Rollback Angle30°
Track Ground Contact Length4 ft 7.9 in(1,419 mm)
Machine Length9 ft 7.2 in(2,925 mm)
Transport Length12 ft 1.0 in(3,680 mm)
Transport Height7 ft 5.4 in(2,270 mm)
Departure Angle30°
Clearance Circle with Bucket7 ft 8.5 in(2,350 mm)
Clearance Circle without Bucket5 ft 0 in(1,535 mm)
Clearance Circle Rear5 ft 5.2 in(1,655 mm)
Track Width15.7 in(400 mm)
Ground Clearance12.6 in(320 mm)
Overall Width without Bucket5 ft 8.5 in(1,740 mm)

Takeuchi Fleet Management

TAKEUCHI FLEET MANAGEMENT
2 Year Standard Service
Minimize Downtime
Remote Diagnostics
Utilization Tracking
Proactive Maintenance
Control Costs

TFM Brochure

Four Pillars

Powerful and Efficient – The turbocharged engine delivers an excellent blend of power and performance and it features a DOC+DPF exhaust after treatment system.

Vertical Lift Loader – Designed to deliver unmatched performance and class leading tipping load and rated operating capacity.

Active Power Control – Maintains engine power for optimal performance, and it may be engaged or disengaged by the operator.

Quiet Ride Track – Allows rollers to ride on a rubber contact pad for reduced vibration and a quieter ride, and the wide block tread improves flotation.

Multiple Working Modes – Power mode delivers maximum power and performance. ECO mode reduces fuel consumption and is ideal for less demanding applications.

Front and Rear LED Work Lights – Provide excellent illumination in low light conditions for greater peace of mind.

Rear Bumper with Tie Downs – Delivers greater protection to the rear of the machine and simplifies anchoring the machine for transport.

Heavy Duty Cross Member – Protects bucket cylinders from damage and it has been lowered for improved attachment visibility.

High Capacity Cooling Module – Enables machine to run cooler and more efficiently for improved component life and attachment efficiency.

Purpose Built Frame – Features multiple cross members for greater strength and rigidity.

Oversized Pins and Bushings – For greater strength where it matters.

Heavy Duty Lift Cylinders – Are over built for greater durability and deliver excellent lifting performance.

Pilot Joystick Controls – Respond immediately to operator input and are low effort for excellent performance and comfort.

Rear View Camera- Allows operator full view of the rear of the machine on the in cab 5.7 in color display.

Deluxe High Back Suspension Seat – Delivers outstanding comfort and features a wide range of adjustments including multiple height positions for improved attachment visibility.

Electronic Dial Throttle and Foot Throttle- Allows operator choose dial or foot throttle or combination of the two to control desired engine speed.

Color Multi-Informational Display – Features a 5.7 full color display that provides the operator with pertinent machine information, allows the operator to adjust hydraulic flow from the seat, and has a wide range of attachment presets that can be set-up.

Cabin – Features greater cab volume, greater functionality, convenient ┬árocker switch layout, 12v accessory outlet, and multiple cup holders.

Hydraulic Oil Sight Gauge – Is easily seen by the operator as they enter the machine.

High Capacity Cooling Module – Swings out for ease of inspection and cleaning.

Access to Maintenance Items – Many key maintenance items are accessible from the rear of the machine: engine oil fill, engine oil dipstick, coolant reserve tank, fuel water separator, air cleaner, and wiper washer fluid.

Simplified Battery Access – Is available through a bolt-on panel located on the left tower.

Clustered Fuel and Engine Oil Filters – Are positioned together beneath the tilt up cabin for greater convenience, and they spin-on from the bottom resulting in minimal clean-up.

Fuel and DEF Fluid Fill – Features an audible alarm that alerts the operator when the fluid level is nearing the fill point reducing spills and clean-up.
