TL6R Compact Track Loader

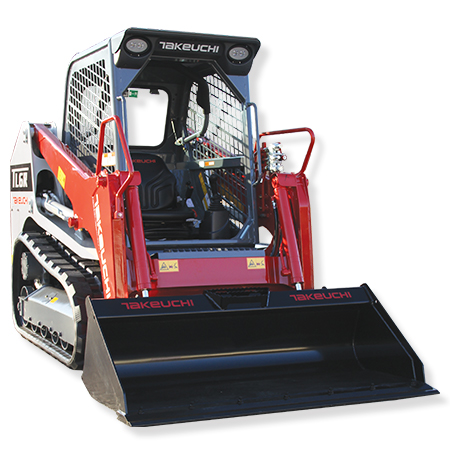

The TL6R features a radial lift loader design and meets all current emission standards. With a height of 6 ft 5.8 in and a width of just over 5 ft the dimensions of the TL6R allow it to excel on job sites that may have height and width restrictions. This track loader comes with a newly designed cabin with an overhead 5.7” color multi-informational display and backlit rocker switches that control a variety of machine functions. The TL6R comes standard with a quiet track design with flotation pads that reduces vibration, noise levels, and improves ride quality.

Product Details

Features

ENGINE
U.S. EPA Final Tier 4 Emission Compliant
Turbocharged
DOC+DPF Exhaust After Treatment
Active Power Control Power Management System
Working Modes - Power and ECO
Automatic Fuel Bleed System
High Capacity Radiator and Hydraulic Oil Cooler Mounted Side-by-Side on Swing Out Frame
Dual Element Air Filter
ELECTRICAL
Multi-Informational Display
Sealed Rocker Switches
12 volt System with 60 amp Alternator
Work Lights, Front and Rear
Engine Preheat
Hour Meter
Back-up Alarm
Horn
UNDERCARRIAGE AND FRAME
Permanently Sealed Track Rollers with Metal Face Seals
Double and Triple Flange Track Rollers
Fully Welded Frame with Integrated Cross Members
Front and Rear Tie-Down and Lift Points
Integrated Rear Bumper
2 Speed Travel
12.6" Quiet Ride Track Design
OPERATOR'S STATION
Tilt-up Operator's Station
Deluxe Adjustable Suspension Seat
Rear Pivoting Seat Bar with Integrated Arm Rest
ROPS / FOPS Structure
Retractable 2" Seat Belt
Retractable 3" Seat Belt (optional)
3 Point Retractable Seat Belt (optional)
Pressurized Cab with Swing Out Door, A/C, Heat, Defrost and Front Wiper (optional)
AM/FM/MP3 Radio with NOAA Weatherband (optional)
HYDRAULIC & WORKING EQUIPMENT
Cushioned Boom Cylinders
Boom Float with Detent
Hydraulic Pilot Controls
Proportional Auxiliary Controls with Detent
Pressure Relieving 1/2" Flat Faced Coupler Body
14-Pin Connector
Hydraulic Self Leveling
Mechanical Quick Coupler (Canopy)
Hydraulic Quick Coupler - Cab - Standard Equipment
Hydraulic Quick Coupler - Canopy - optional
Primary Flow Auxiliary Hydraulics 18.4 gpm
High Flow Auxiliary Hydraulics 33 gpm (optional Cab Only)

Specifications

OPERATING PERFORMANCE
Operating Weight - Canopy7,485 lb(3,395 kg)
Operating Weight - Cab7,780 lb(3,530 kg)
Tipping Load5,269 lb(2,390 kg)
Rated Operating Capacity, SAE J818*1,841 lb(835 kg)
Operating Load at 50% of Tipping Load2,635 lb(1,195 kg)
Bucket Breakout Force5,930 lb(2,690 kg)
Lift Arm Breakout Force4,860 lb(2,205 kg)
Traction Force8,655 lb(3,926 kg)
Ground Pressure - 15.7" Track4.9 psi(33.5 kPa)
Ground Pressure - 12.6" Track5.1 psi(34.8 kPa)
Travel Speed - Low4.3 mph(7.0 km/hr)
Travel Speed - High6.2 mph(10.0 km/hr)
*Rated operating capacity of track loaders is rated according to SAE J818 at no more than 35% of the tipping load.
HYDRAULIC SYSTEM
Auxiliary Flow - Primary Circuit17.8 gpm(67.4 Lpm)
Hydraulic System Pressure2,988 psi(20.6 MPa)
ENGINE
Make / ModelKubota / V2403-CR-TE4B
Engine Displacement148.5 cu in(2.4 L)
Horsepower @ 2,700 rpm65.2 hp(48.6 kW)
Maximum Torque @ 1,500 rpm144.3 ft-lb(195.6 Nm)
FLUID CAPACITIES
Engine Lubrication7.6 qt(7.2 L)
Cooling System14.0 qt(13.0 L)
Fuel Tank Capacity20.0 gal(75.7 L)
Fuel Consumption (65% of Full Load)2.69 gal/hr(10.2 L /hr)
Hydraulic Reservoir Capacity7.9 gal(30.0 L)
Hydraulic System Capacity13.5 gal(51.0 L)

Dimensions

MACHINE DIMENSIONS
Max. Lift Height to Bucket Pin9 ft 6.4 in(2,905 mm)
Dump Height Fully Raised7 ft 5.6 in(2,275 mm)
Dump Reach Fully Raised1 ft 10.0 in(560 mm)
Dump Angle38°
Rollback Angle31°
Track Ground Contact Length4 ft 6.9 in(1,395 mm)
Machine Length8 ft 9.9 in(2,689 mm)
Transport Length10 ft 11.1 in(3,330 mm)
Transport Height6 ft 5.8 in(1,975 mm)
Departure Angle30°
Clearance Circle with Bucket6 ft 10.5 in(2,095 mm)
Clearance Circle without Bucket4 ft 6.9 in(1,395 mm)
Clearance Circle Rear4 ft 11.8 in(1,520 mm)
Track Width12.6 in(320 mm)
Ground Clearance9.1 in(230 mm)
Overall Width without Bucket5 ft 0.2 in (1,530 mm)

Takeuchi Fleet Management

TAKEUCHI FLEET MANAGEMENT
2 Year Standard Service
Minimize Downtime
Remote Diagnostics
Utilization Tracking
Proactive Maintenance
Control Costs

TFM Brochure

Four Pillars

Powerful Drives – Double reduction planetary drives provide exceptional pushing power, delivering maneuverability, outstanding performance, and the standard two speed travel allows for increased travel speeds.

Dual Flow Auxiliary Hydraulics – Features multiple attachments presets and the ability to change hydraulic flow within the 5.7′ monitor display.

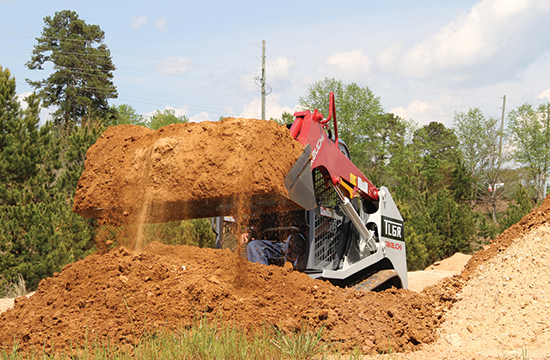

Active Power Control – Maintains engine power for optimal performance, and it may be engaged or disengaged by the operator.

Quiet Ride Track – Allows rollers to ride on a rubber contact pad for reduced vibration and a quieter ride, and the wide block tread improves flotation.

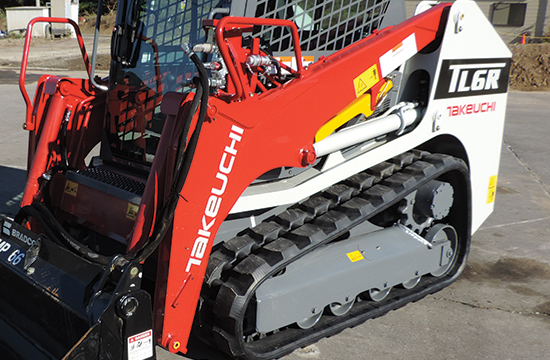

Radial Lift Loader – Is designed to deliver excellent mid-height reach and unmatched performance in the toughest applications.

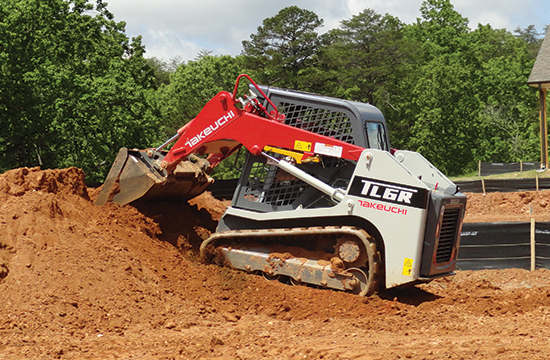

Total Package – Outstanding operating capacity coupled with tremendous breakout force allow you to get the job done more efficiently.

Built to Last – The heavy duty rear door is built to protect the radiator and hydraulic oil cooler from rear impacts, and will provide years of service and dependability.

Purpose Built Frame – Features multiple cross members for greater strength and rigidity.

Model Specific Oversized Undercarriage Components – For long lasting durability. TL6R features double and triple flange track rollers for less susceptibility to detracking.

Rear Bumper with Tie Downs – Delivers greater protection to the rear of the machine and simplifies anchoring the machine for transport.

High Capacity Cooling Module – Enables machine to run cooler and more efficiently for improved component life and attachment efficiency.

Heavy Duty Cross Member – Provides strength and rigidity throughout the loader arm and a low threshold for easy entry/exit and excellent visibility to the attachment.

Pilot Joystick Controls – Respond immediately to operator input for greater control and performance, and they are low effort for excellent comfort.

Rear View Camera- Allows operator full view of the rear of the machine on the in cab 5.7″ color display. Along with a large panoramic rear view mirror for enhanced visibility to the rear of the machine.

Color Multi-Informational Display – Features a 5.7 full color display that provides the operator with pertinent machine information, allows the operator to adjust hydraulic flow from the seat, and has a wide range of attachment presets that can be set-up.

Cabin – Features a larger cab, greater functionality, convenient  rocker switch layout, 12v accessory outlet, and multiple cup holders.

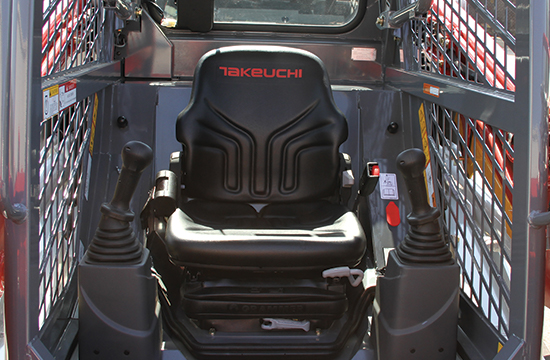

Deluxe Suspension Seat – Allows the operator to remain comfortable through out the workday by providing a wide array of settings that include adjustments for height which also improves attachment visibility.

Swing Out Door – For the TL6R to accommodate our low profile ROPS/FOPS cab/canopy that can easily enter areas with low overhead clearance.

Simplified Battery Access – Is available through a bolt-on panel located on the left tower.

Rear Tower Clean-outs – Easy access to high capacity steel hydraulic tank along with hydraulic filters, fill and breather cap.

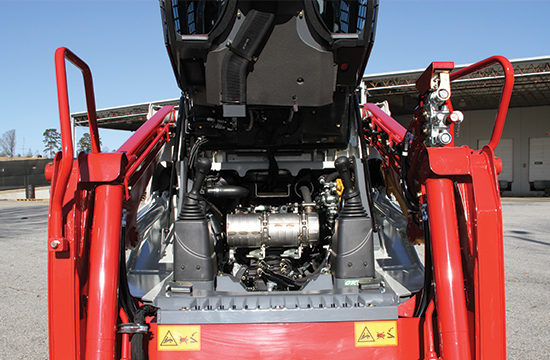

Open Up – With a tilt back operator’s station and large removable belly pans routine maintenance and cleaning is easy to perform.

Access to Maintenance Items – Many key maintenance items are accessible from the rear of the machine: engine oil fill and filters, engine oil dipstick, coolant reserve tank, fuel water separator, and air cleaner.

Two Large Belly Pans – For easy clean out of dirt and debris. Two smaller access panels for engine oil drain and fuel water separator.
