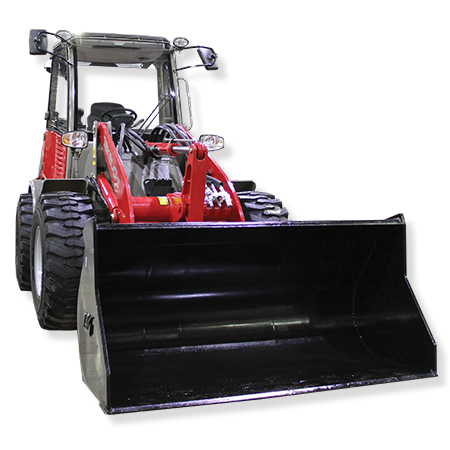

TW60 Series 2 Machine Cutout
Performance

The Yanmar 4TNV86CHT-MAW engine is turbocharged, EPA Final Tier 4 compliant and delivers outstanding power, quiet operation, excellent performance, and fuel efficiency.

Durability

The exceptionally strong and durable Z-bar loader linkage features powerful breakout forces, heavy lifting capabilities and is ideal for excavating and stockpile loading.

Operator Comfort

The elevated operator’s station provides excellent panoramic visibility for greater peace of mind.

Serviceability

The Yanmar 2.1L turbocharged engine is EPA Final Tier 4 compliant and low maintenance.

Takeuchi Four Pillars

Compare Models
Request Information

TW60 Series 2

Compact Wheel Loader

Compact and nimble, the TW60 Series 2 is well equipped to handle a wide range of jobs and attachments. A universal hydraulic skid steer coupler enables the TW60 Series 2 to utilize a wide range of skid steer attachments, and it is easily controlled from the operator’s station. The quiet and turbocharged engine is equipped with a DOC/DPF exhaust aftertreatment system and produces 61 horsepower (45.6 kW) for excellent power and performance around the job site. 100% locking differentials can be engaged at low speeds allowing the operator to work in varied terrain and extreme conditions. Daily maintenance and inspections are simple to perform on the TW60 Series 2 due to the engine hood that opens overhead providing access to key inspection points and grease points that are easily accessed on the loader and articulation points.

Download Brochure                    Highlight Video                          Machine Specs and Dimensions

Machine Features                        Comparative Specs                   Financing Options

Features and Benefits

  • Z-Bar Loader Linkage on Front End of TW60 Series 2 Wheel Loader
    Z-Bar Loader Linkage
    • Greater bucket breakout and lift arm forces – excels in grading and dirt work applications.
    • Higher hinge-pin heights – ideal for loading dump trucks over the side.
  • TW80 Series 3 Axles and Center Pin Oscillation
    Center Pin Oscillation
    • 12 degrees of oscillation keeps the operators station stable while the working equipment oscillates.

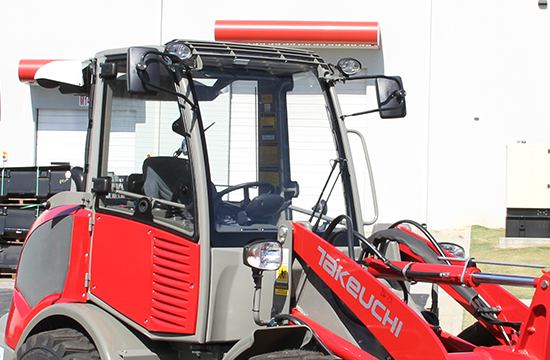

  • Outside of TW60 Series 2 Wheel Loader
    Tight Turning Radius
    • With 40 degrees of articulation these units are highly maneuverable in tight spaces.
    • True center pivot steering allows the rear wheels to follow the same tracks and the front making less impact to the job site.

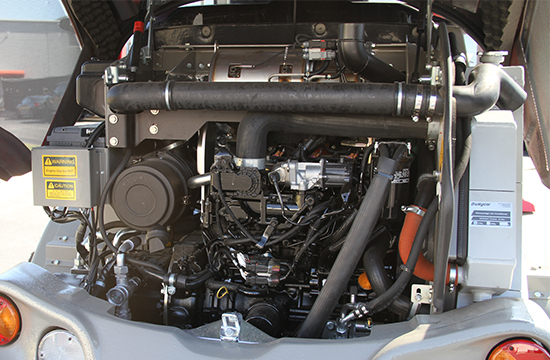

  • Engine on TW60 Series 2 Wheel Loader
    Auxiliary Hydraulic System
    • Standard 15.8 GPM system allows for maximum attachment versatility.
    • Over-sized Hydraulic reservoir – optimal hydraulic system cooling.

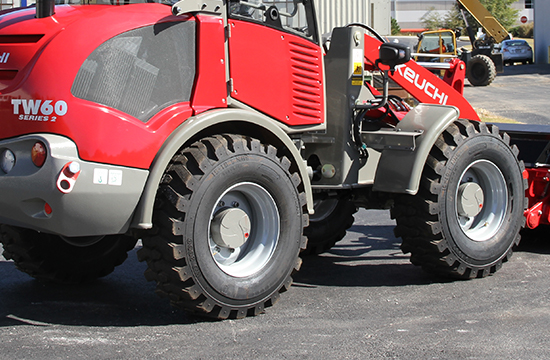

  • Side of TW60 Series 2 Wheel Loader
    Drive Train
    • Hydrostatic Drive with 100% Inching pedal keeps engine RPMs high while precisely metering machine speed.
    • 100% Locking Differentials: Front and Rear for added peace of mind when in unstable soil conditions.
    • 2 Speed Travel with optional road gear with speeds up to 17.4 mph.
    • Rigid Heavy Duty Spicer Axles with Outboard Planetary Reduction Drives provide exceptional torque and durability.
  • Cab in TW60 Series 2 Wheel Loader
    Deluxe Operator Station
    • Air Conditioning, Heat, Front and Rear Wipers, Front and Rear Washers, and Rear Defrost keep the operator comfortable year round.
    • Elevated Operator’s Station with Panoramic Glass provides 360 degree view of worksite.
    • Deluxe Lighting Package includes Work, Driving and Signal Lights that keep the work area and machine visible in low light conditions.
    • Suspension Seat with Arm Rests keeps the operator comfortable and properly positioned over the controls.
    • Multi-Functional Joystick for Machine Direction, Bucket Control, Loader Arms, Diff Lock, High Speed, and Auxiliary Controls are low effort and precise.

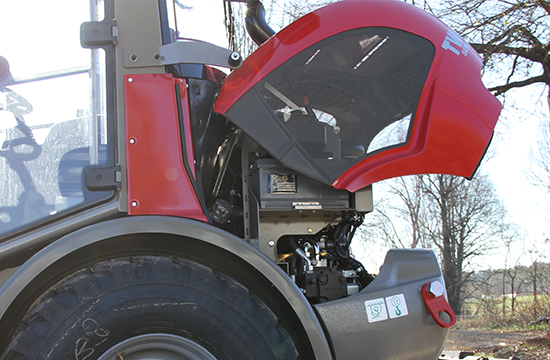

  • Easy Access to Hydraulic tank, radiator & air cleaner for TW60 Series 2 Wheel Loader
    Ease of Maintenance
    • Outboard Planetary Drives makes service and oil changes easy.
    • Ground level serviceability-engine service and daily maintenance check points are easily accessed through the rear hood.
    • Tier 4 Final DOC/DPF exhaust aftertreatment
  • Steering Wheel in TW60 Series 2 Wheel Loader
    Added Benefits
    • No Spin turn causes less tire wear and is easier on driveline components.
    • Better Visibility – 360 degree panoramic view from elevated operator station.
    • Lighter Footprint – better flotation results in less impact to soil.
